01
Complete line, ex-works
€890,000 excl. VAT, ex-works our warehouse in Częstochowa. The line is not sold in parts.
Reifenhäuser Reicofil · seller INTER-PLAST · Lot PL-001 · Available
Used meltblown line, 1600 mm working width. It has never made a commercial roll.
Reicofil MB 1600 meltblown line
€890,000 excl. VAT · complete line, ex-works Częstochowa, Poland
- 205 operating hours
- Audited by Reifenhäuser, Dec 2025
- Packed and ready to ship
The 205 hours on the counter come from factory start-up and Reifenhäuser's audit tests. The line was dismantled under the supervision of the manufacturer's audit team by personnel certified for this work. It is packed and stored at our warehouse in Częstochowa.
Built
2021
Operating hours
205h
Working width
1600mm
Price excl. VAT (new ≈ €7.5M)
€890K

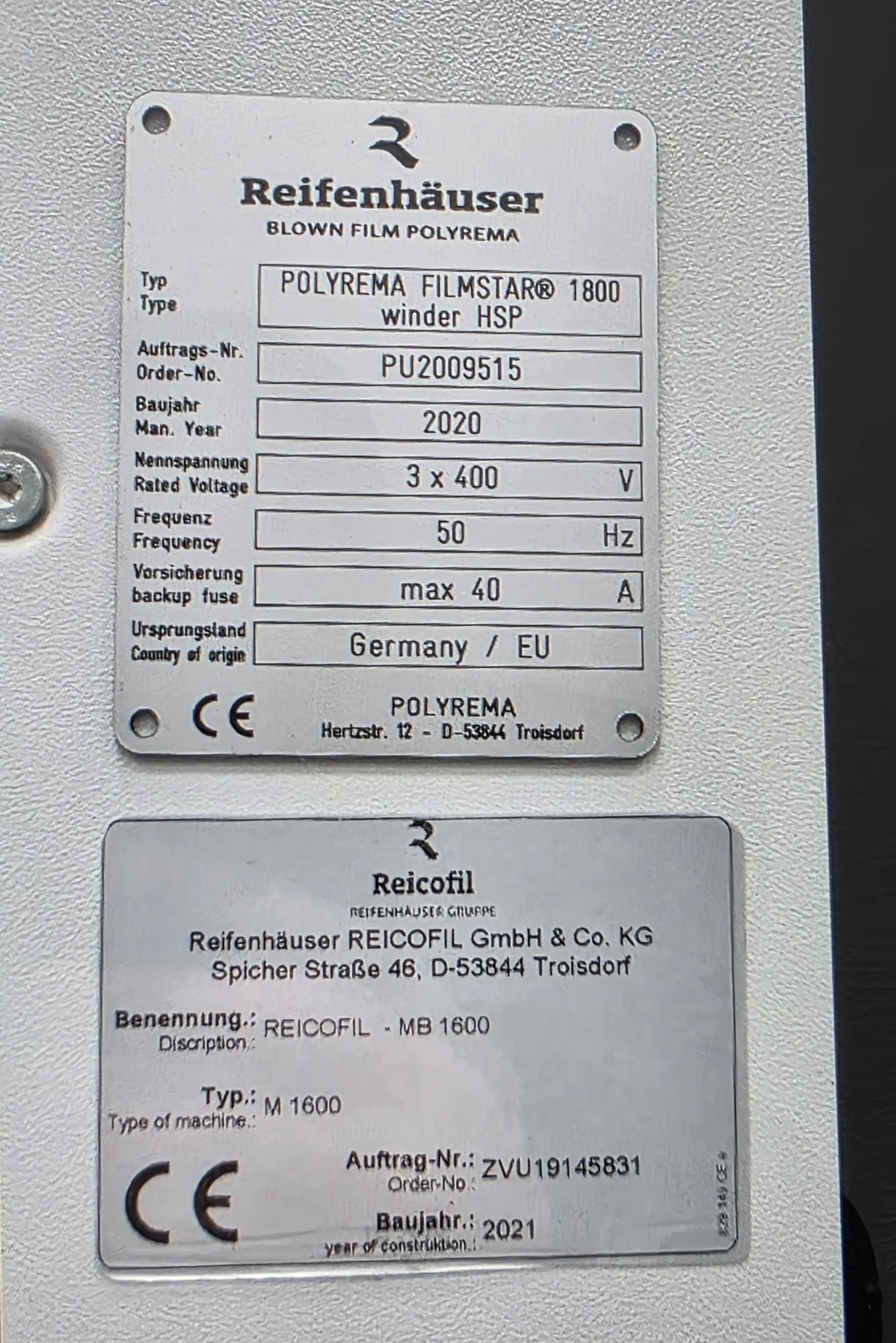

Reicofil MB 1600
Complete Reifenhäuser meltblown line, built in 2021, 205 operating hours. Scroll down to see each unit.

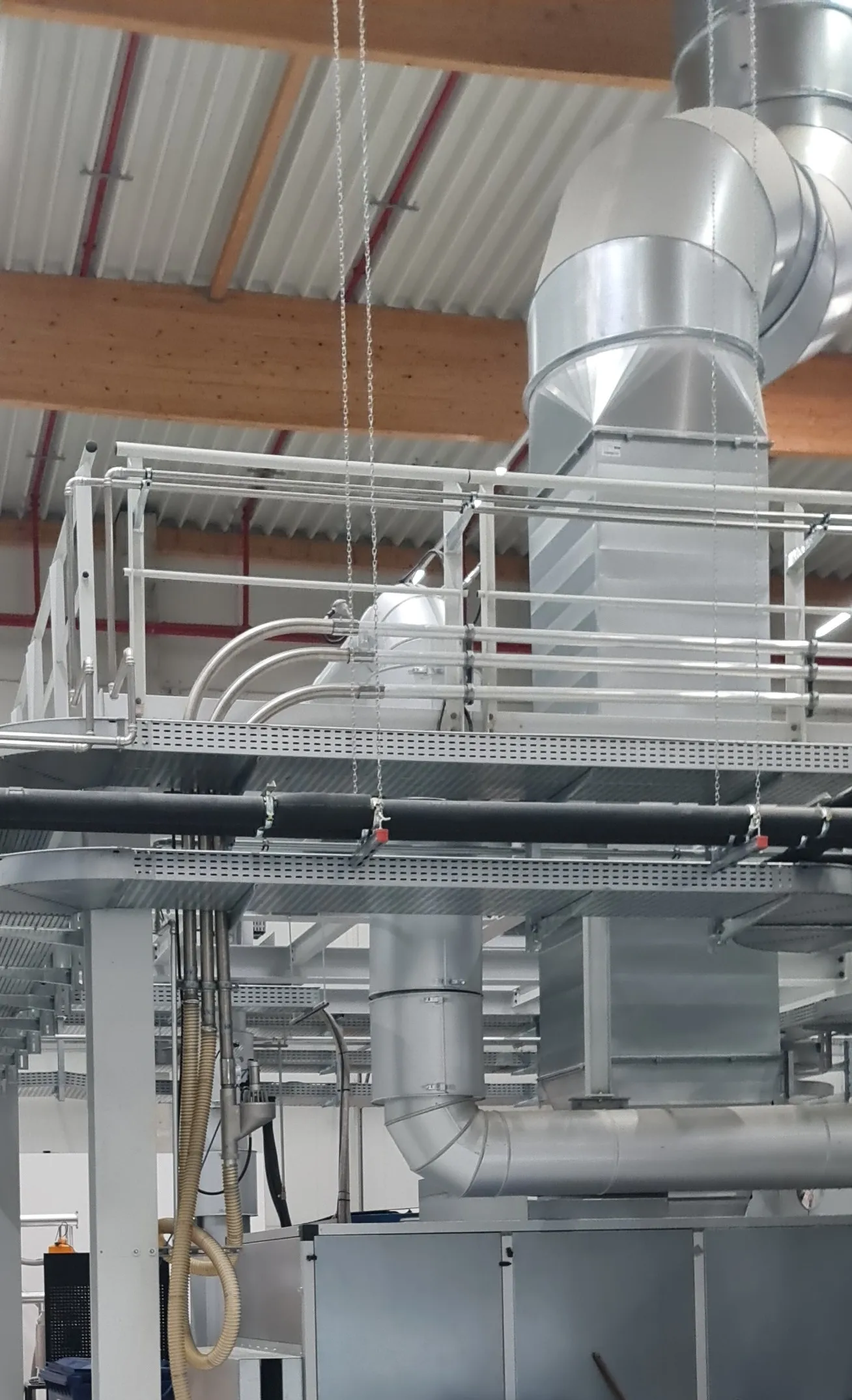

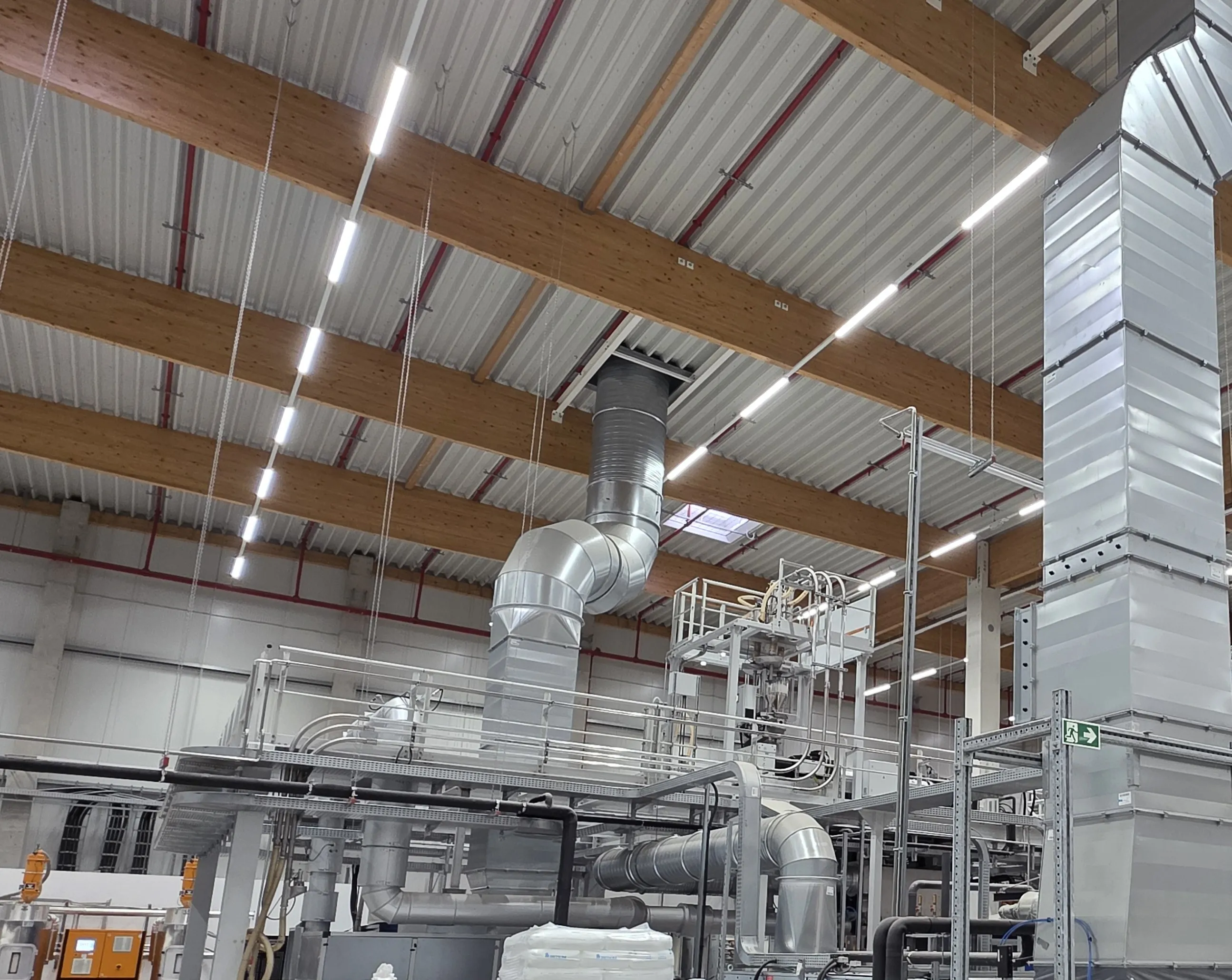

Structure
Steel platform
Operator platform with stairs, a separate dosing deck with ladder, and guard rails all round.
- Main deck
- +3.85 m
- Dosing deck
- +6.70 m
Unit 01
Est. value €135K–€185K

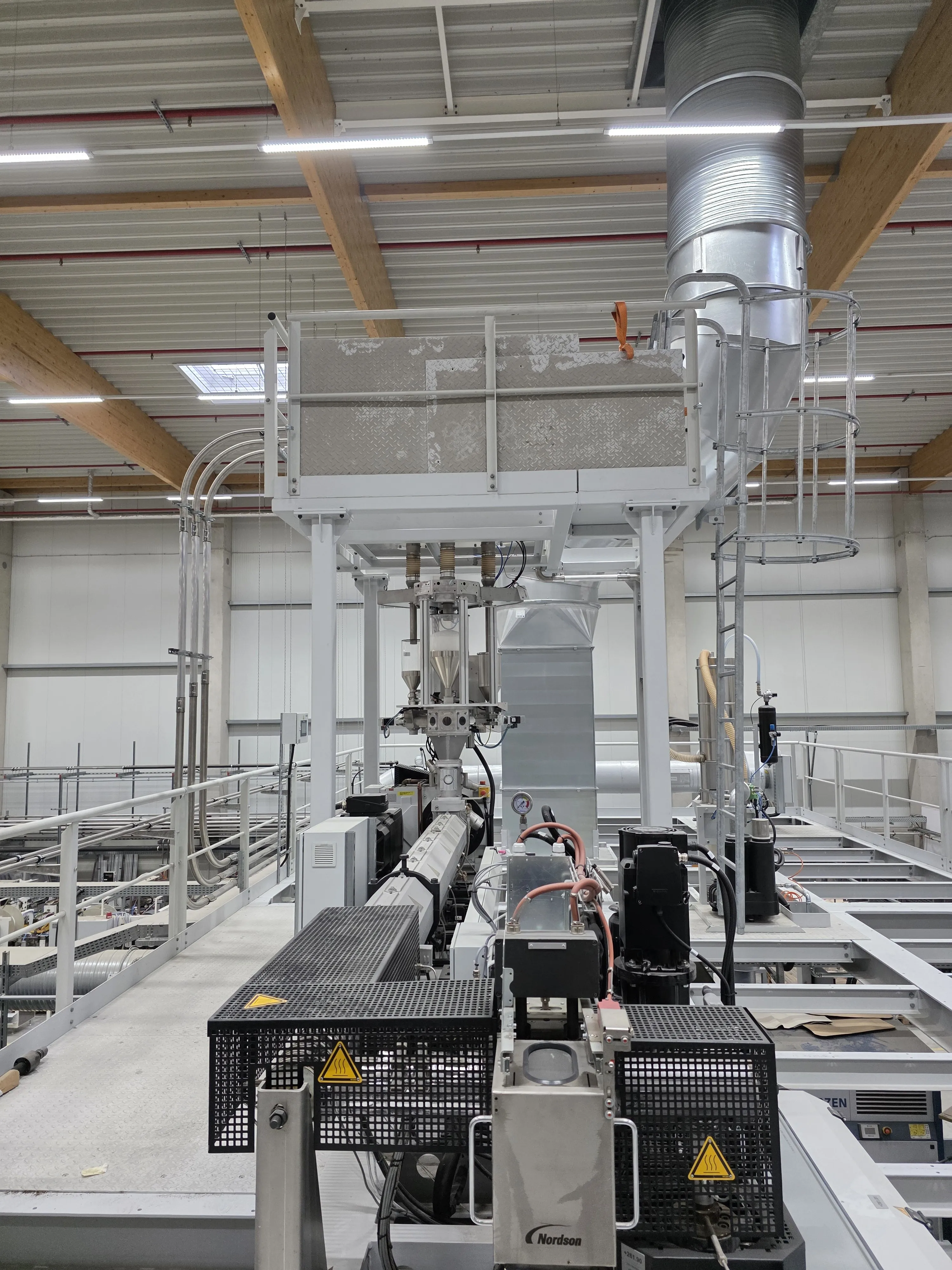

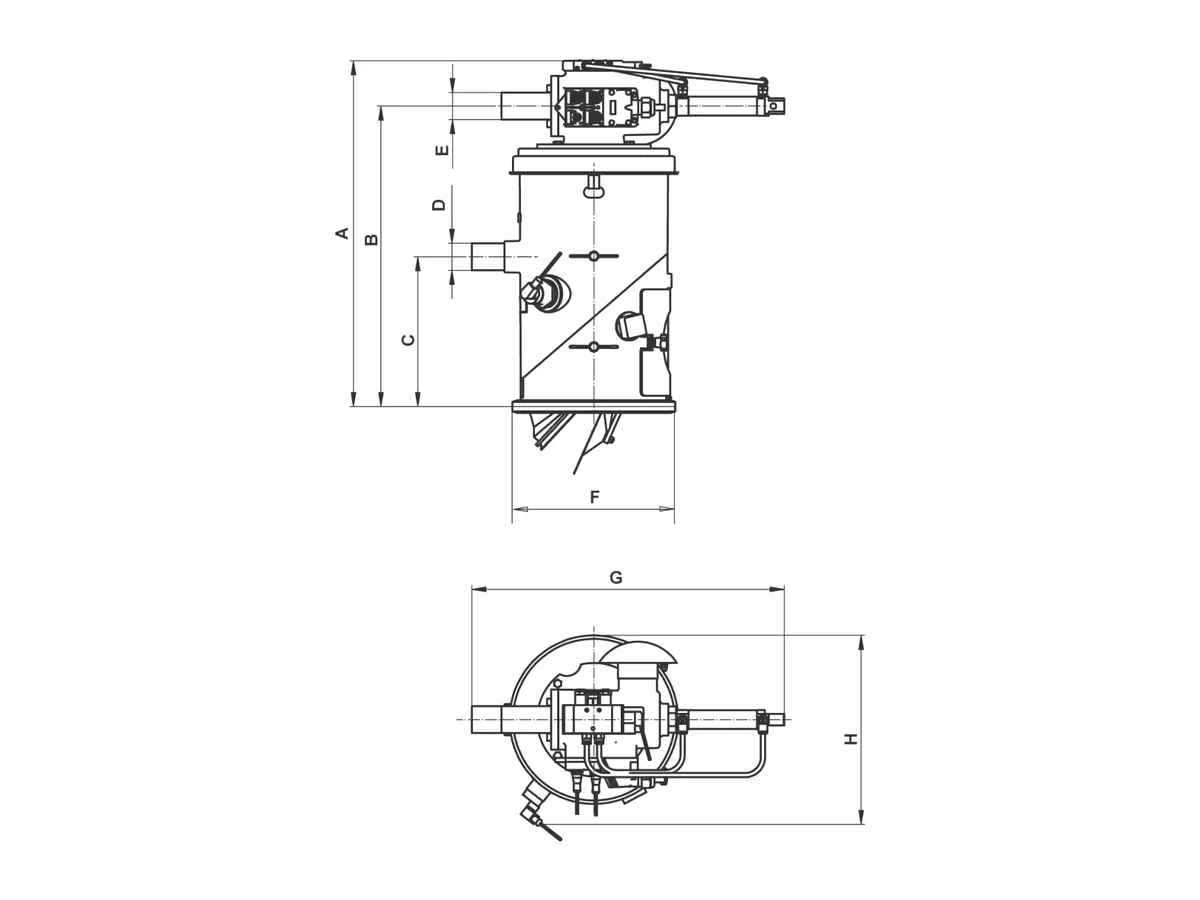

Dosing
Three-component gravimetric dosing on its own deck, feeding the extruder from above.
- Accuracy
- ±0.5–1 %
- Components
- 3
Unit 02
Est. value €275K–€375K

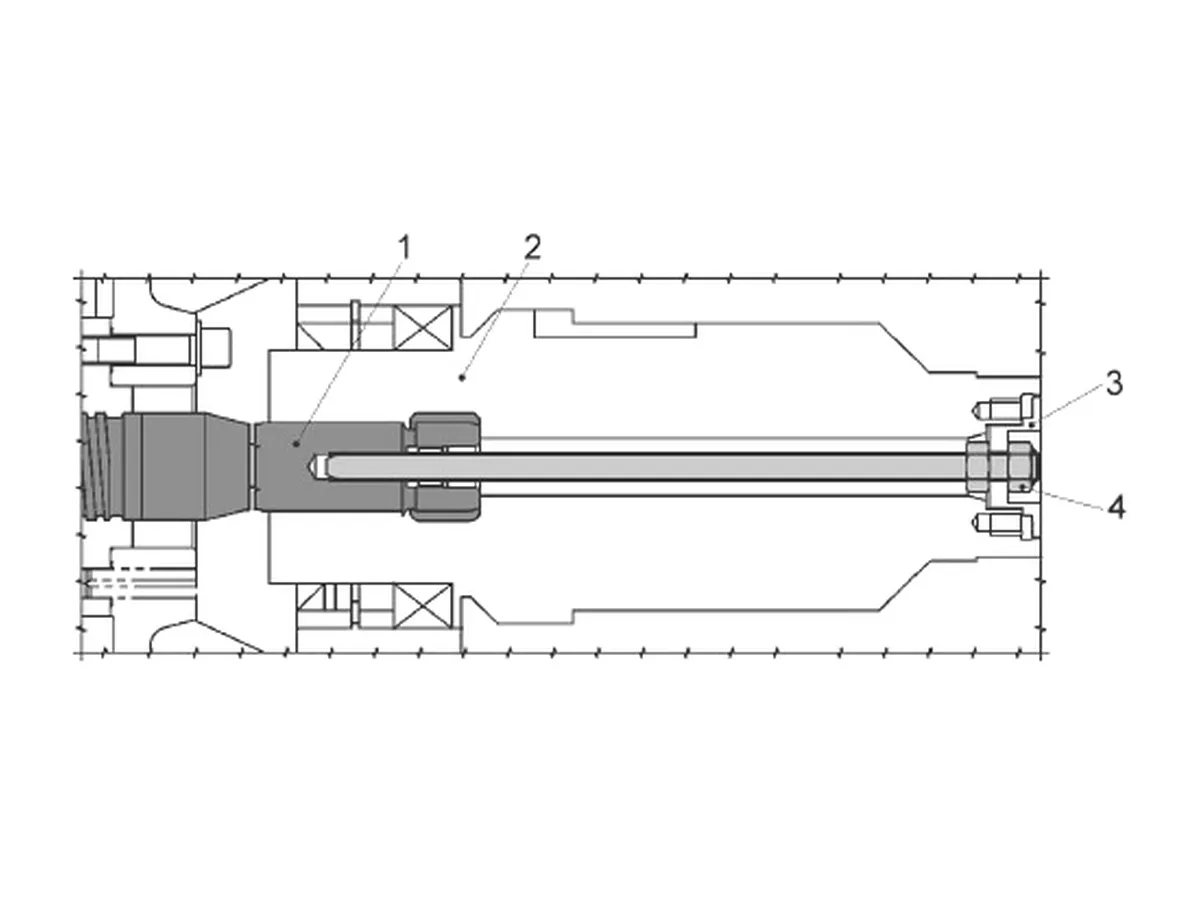

Extruder
Reifenhäuser RT 1101-1-100-30D. Tested to 135 °C in the December 2025 audit.
- Screw
- Ø100 mm
- L/D
- 30
Unit 03
Est. value €45K–€65K

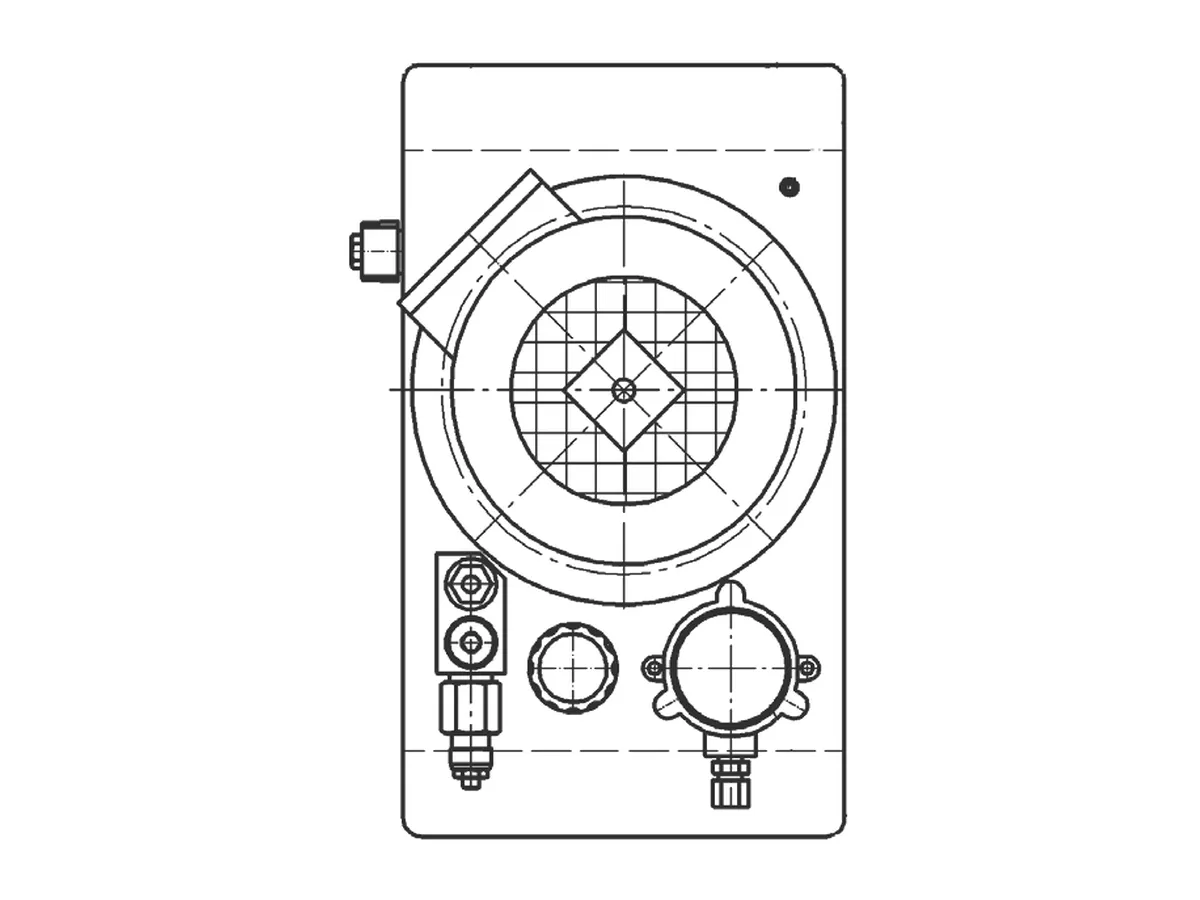

Screen changer
K-SWE 80 continuous screen changer filters the melt without stopping production.
- Size
- Ø80 mm
Unit 04
Est. value €95K–€125K
Spin pump
Melt pump meters the polymer into the die and sets basis-weight uniformity across the width.
- Width served
- 1600 mm
Unit 05
Est. value €765K–€1.04M

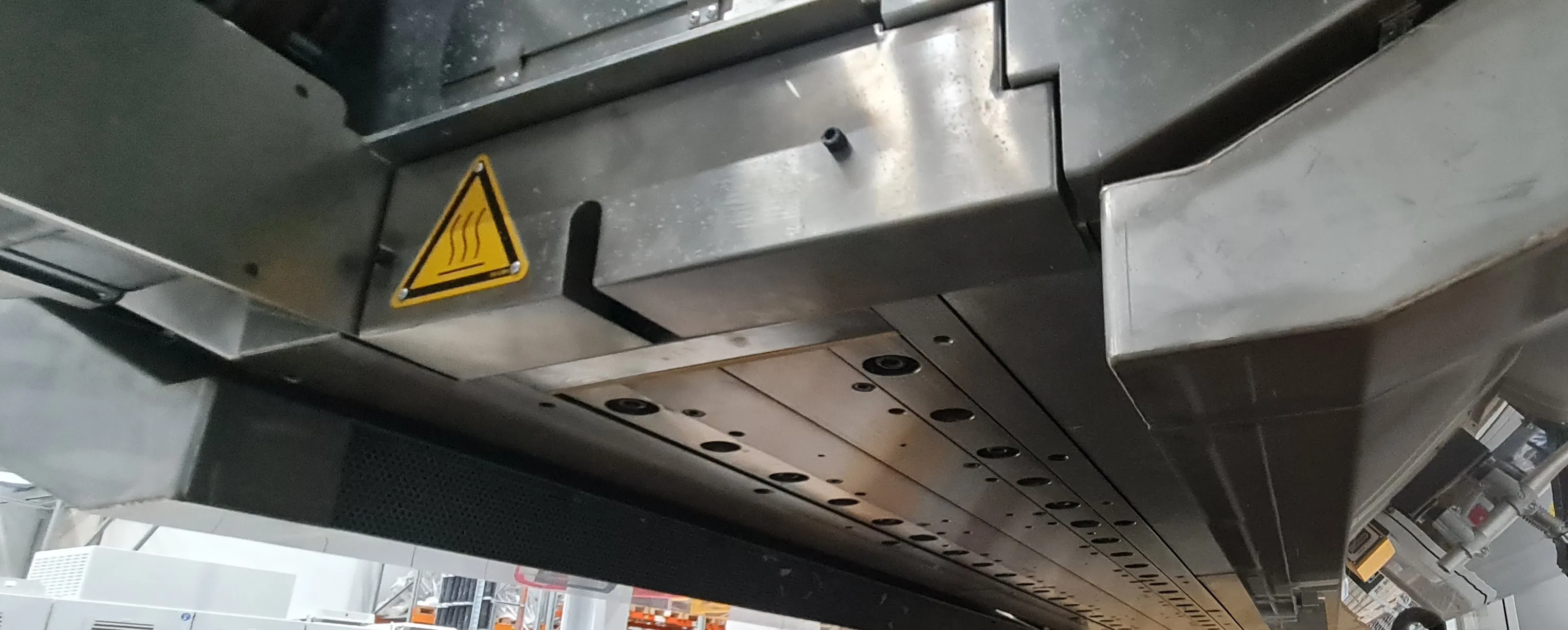

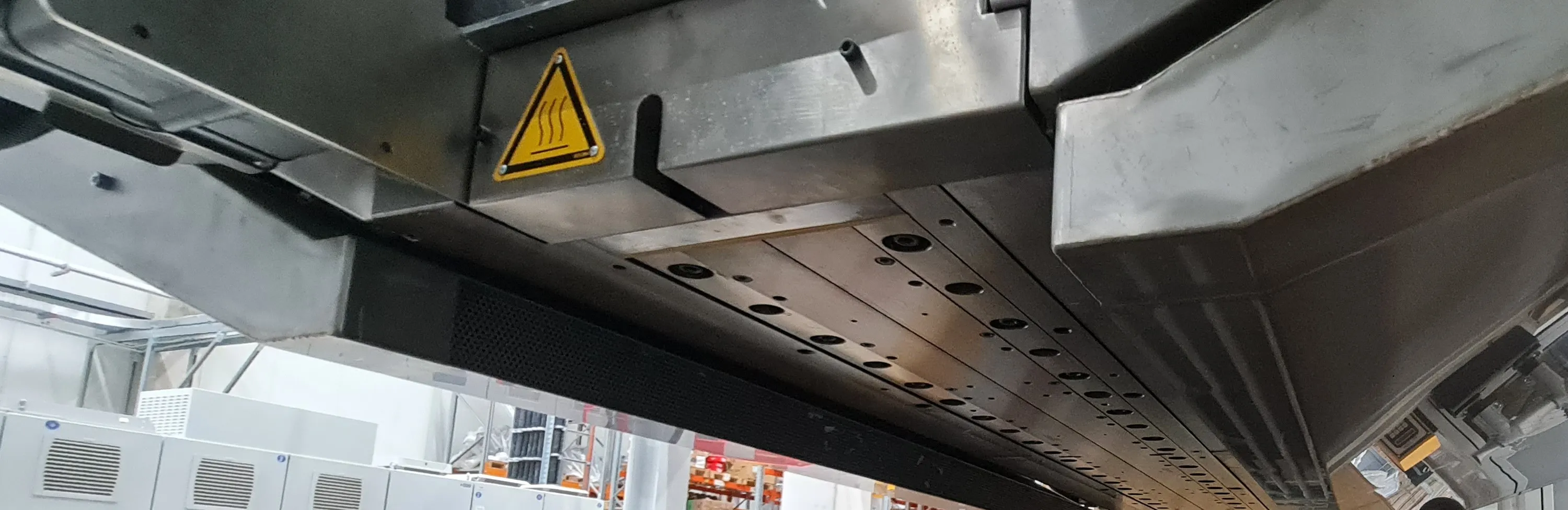

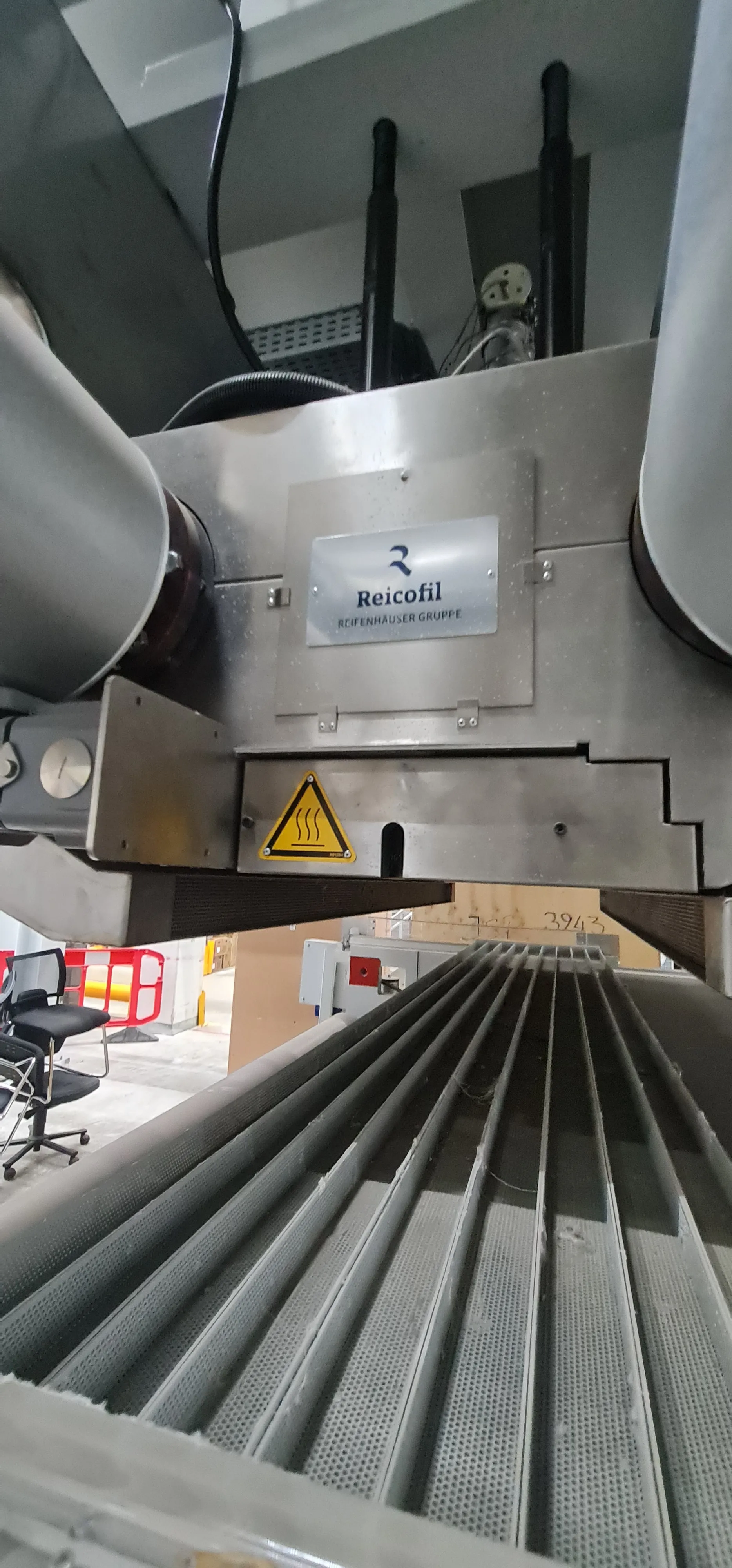

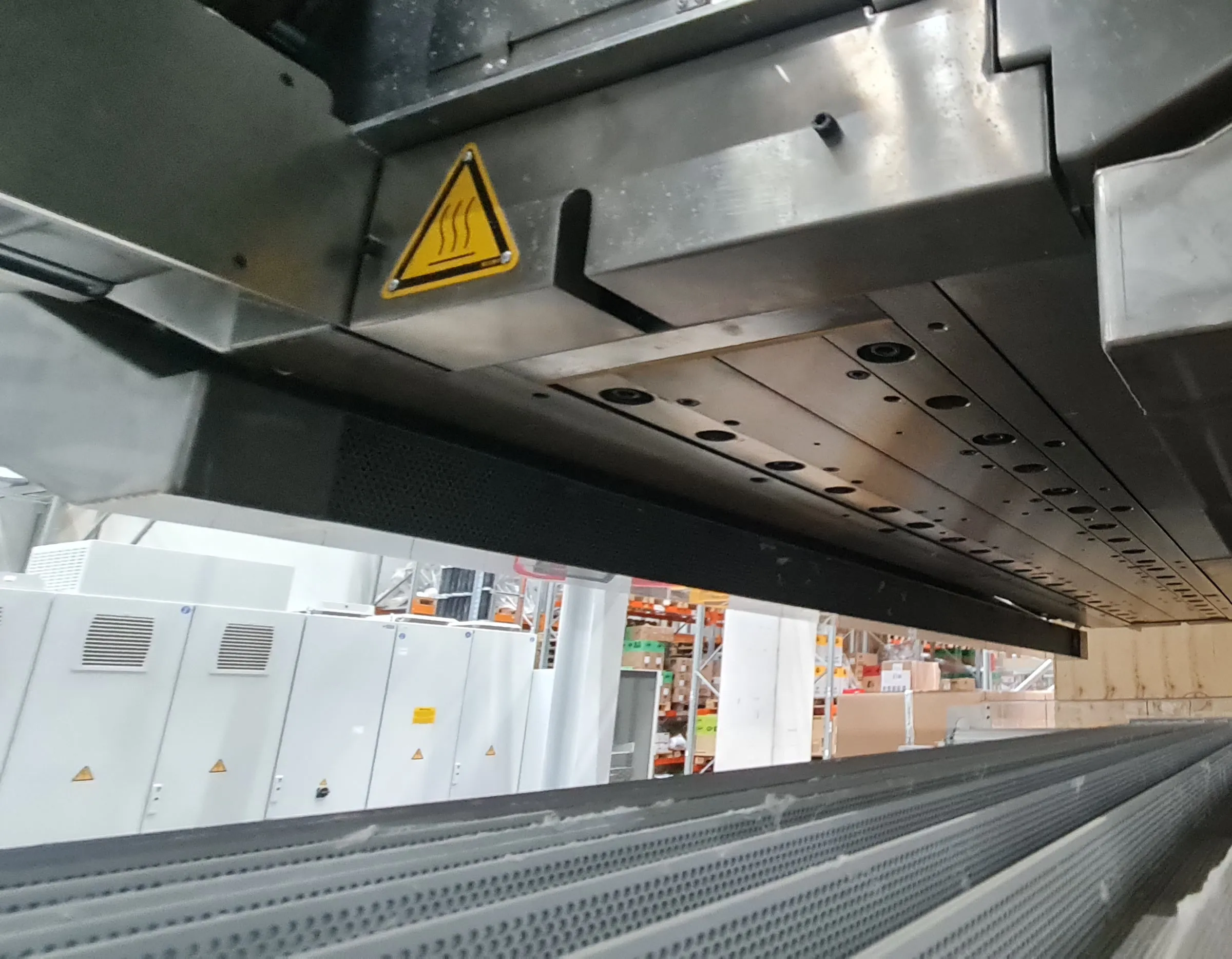

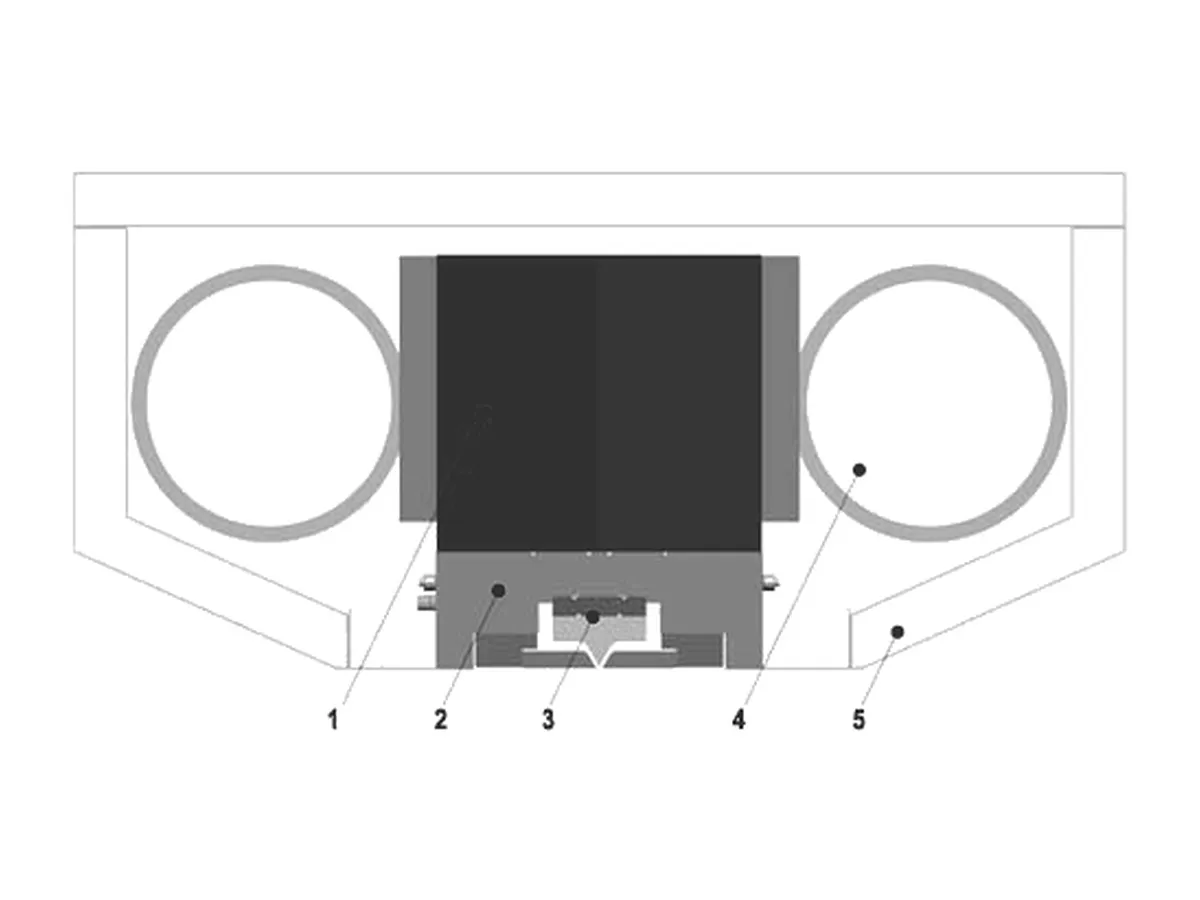

Meltblown die
MB 1600 die with air knives. The most expensive single component of the line.
- Nozzles
- 50 holes/inch
- Width
- 1600 mm
Unit 06
Est. value €40K–€50K

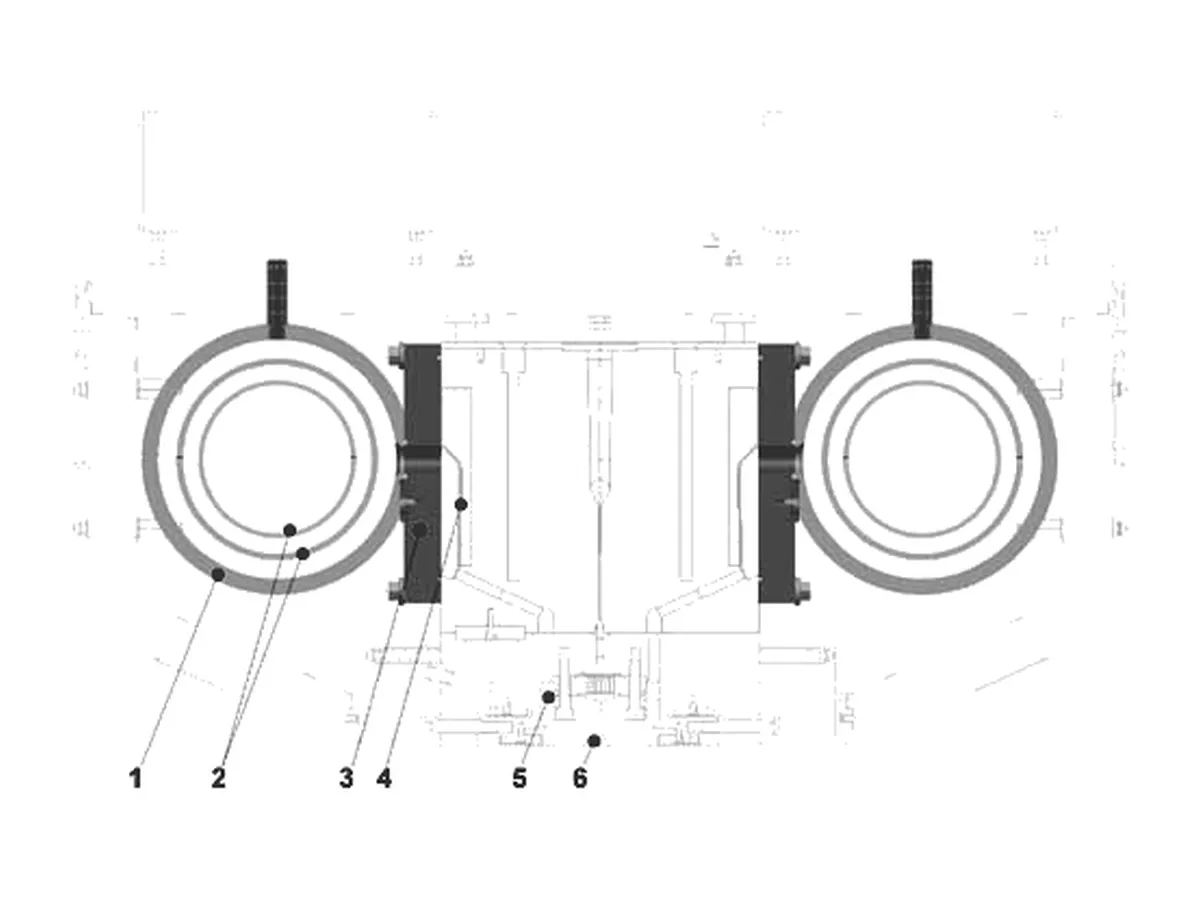

Hot-air piping
Insulated hot-air lines from the heater on the deck down to both ends of the die.
Unit 07
Secondary air
Secondary-air chambers at the die. Their air conditioner takes air in through a 14 m stack.
- Inlet stack
- 14.1 m
Unit 08
Est. value €170K–€230K

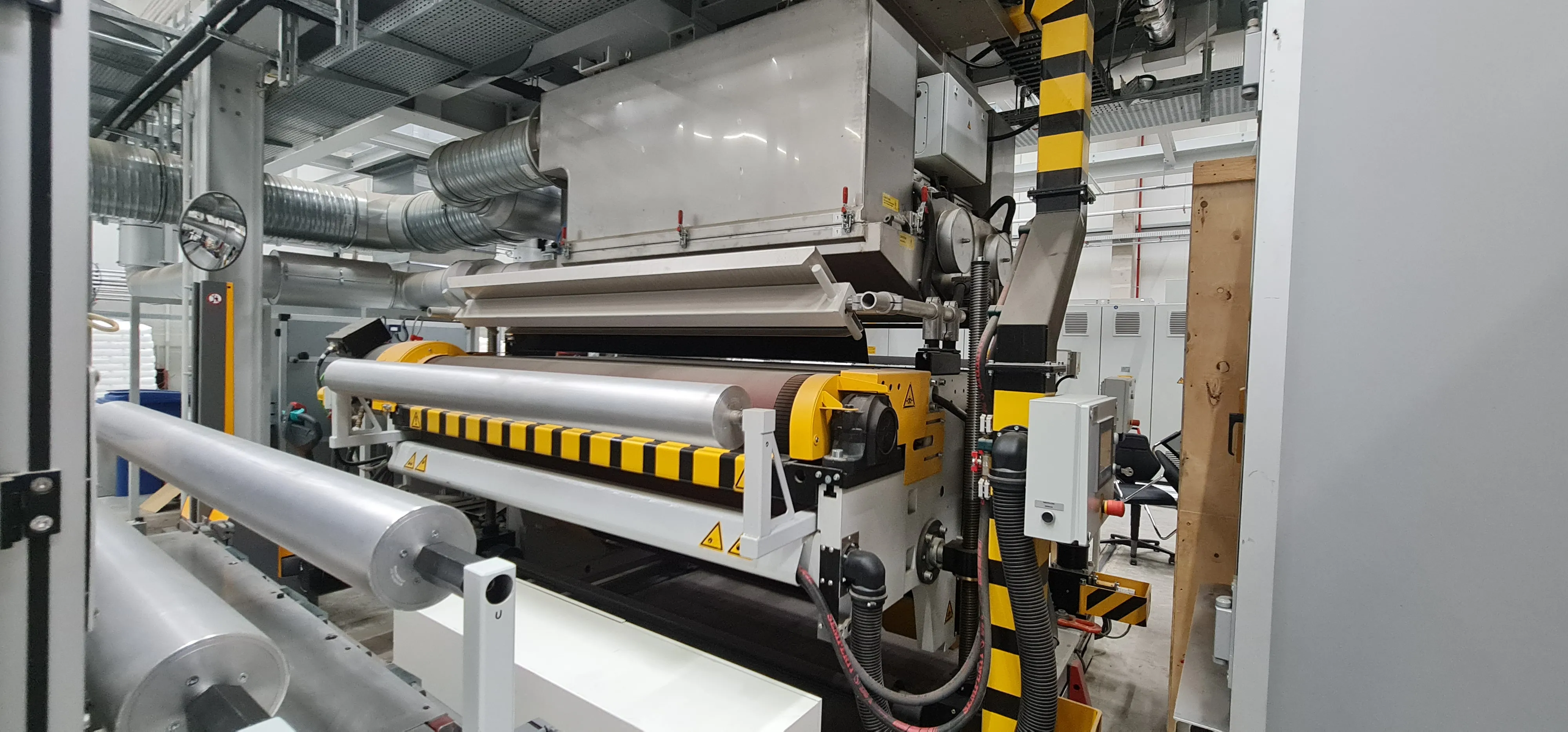

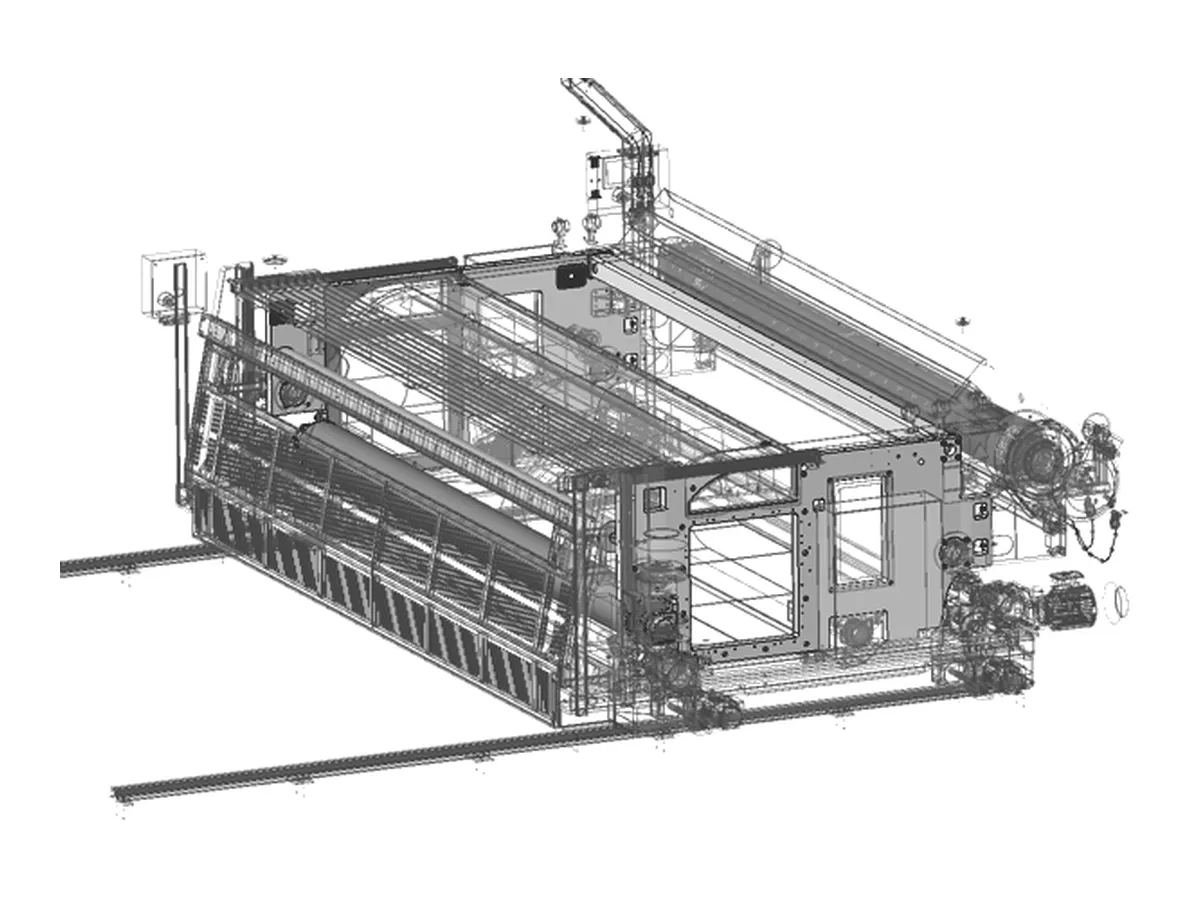

Screen belt machine
Movable vacuum belt that forms the web.
- Basis weight
- 10–80 g/m²
- Speed
- 5–80 m/min
Unit 09
Est. value €100K–€140K

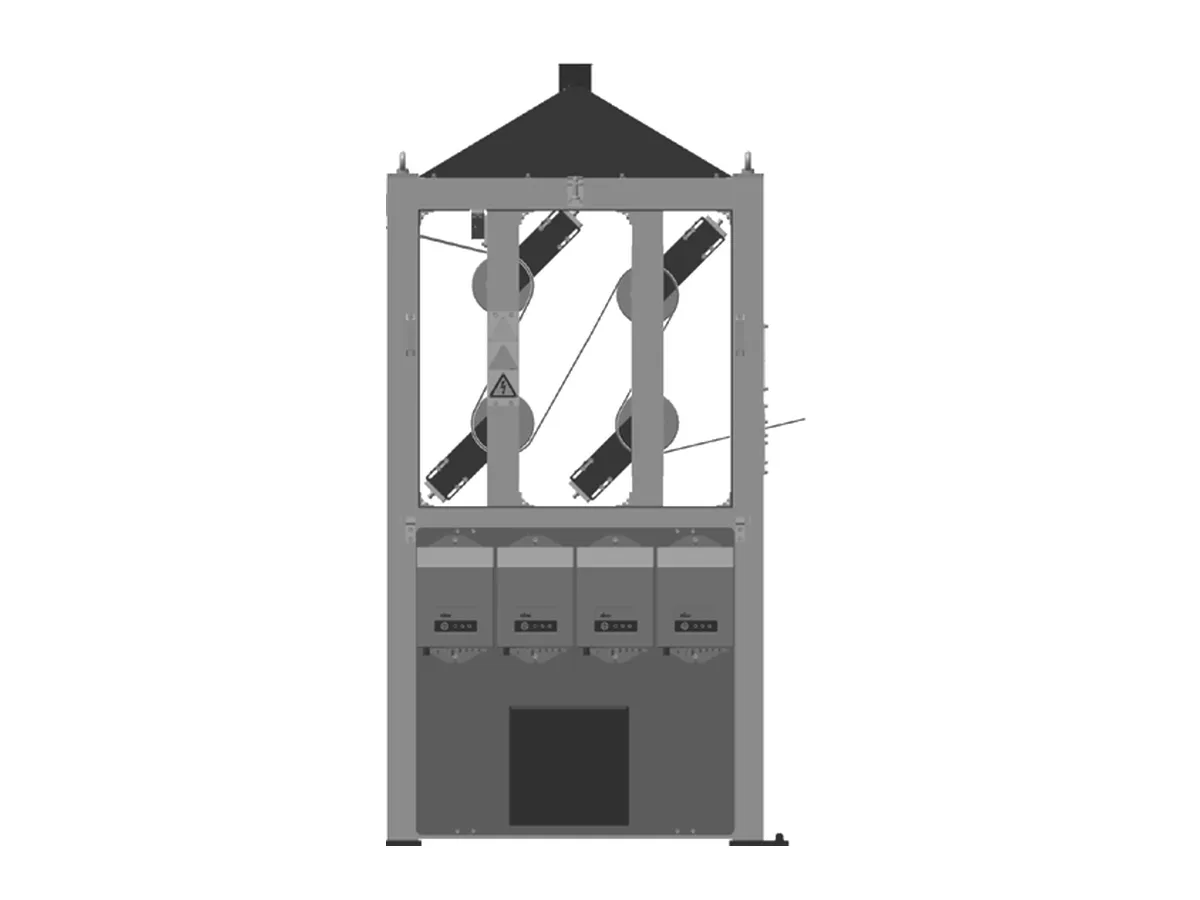

Electrostatic charging
Charging unit for high-efficiency filtration media.
- Voltage
- 30 kV DC
Unit 10
Est. value €195K–€265K

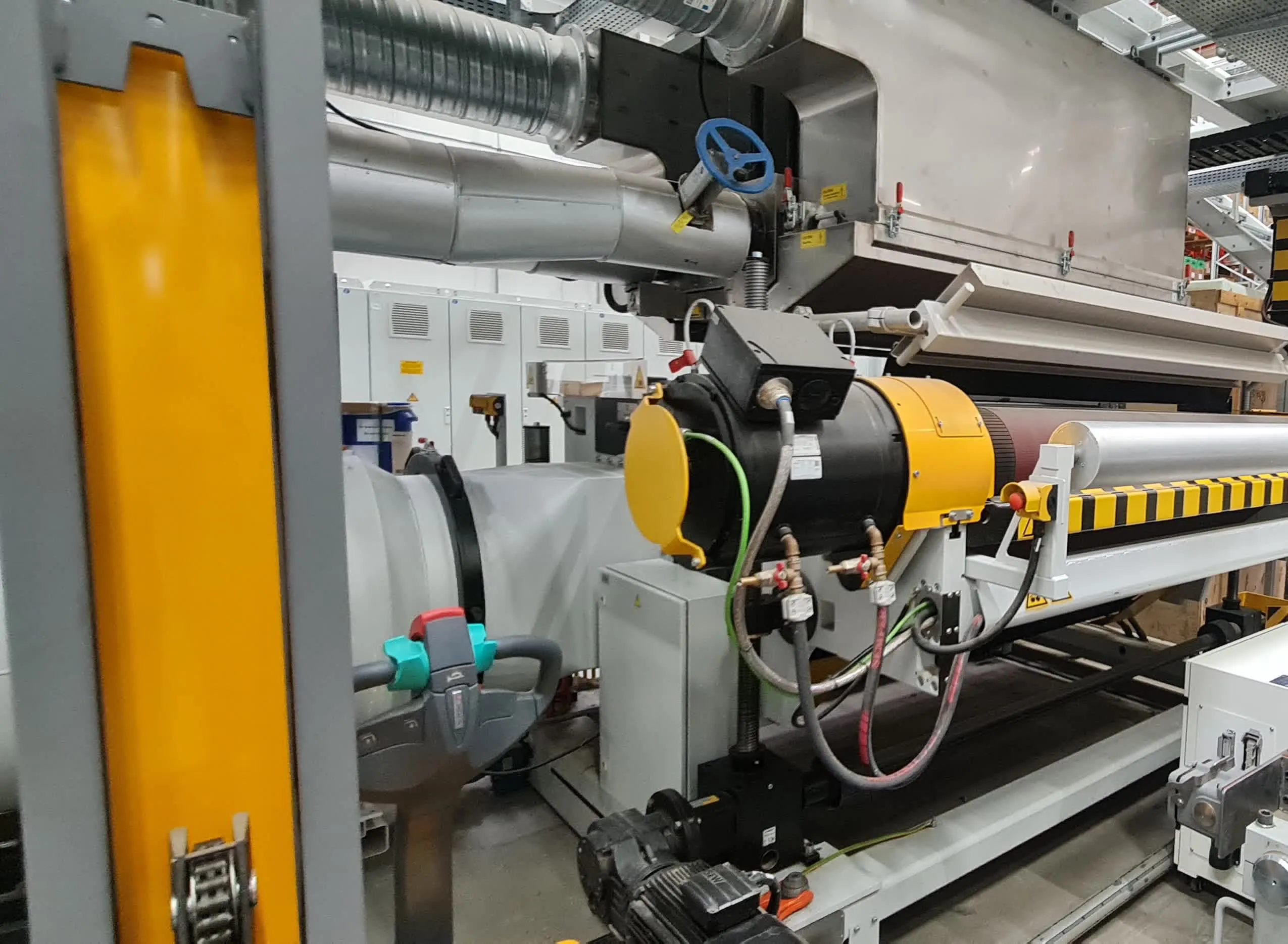

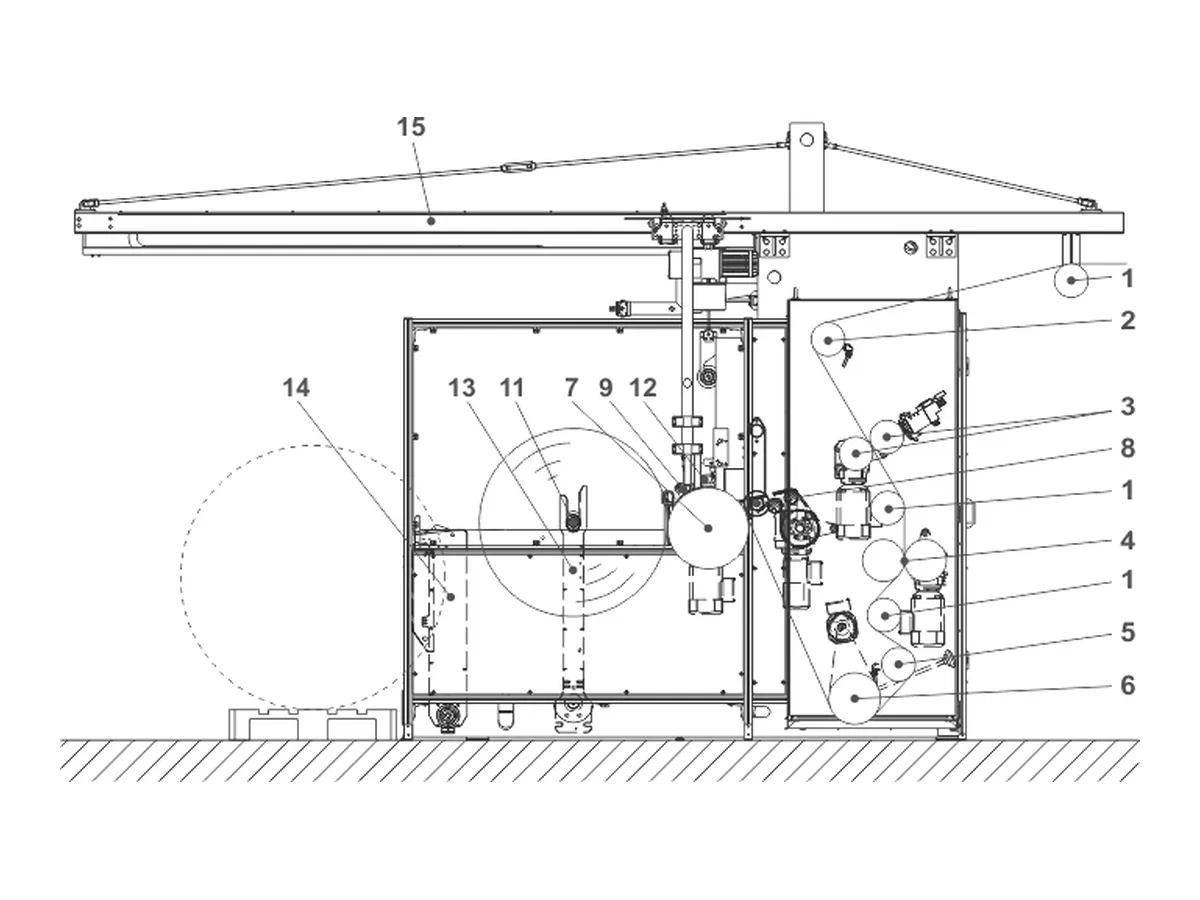

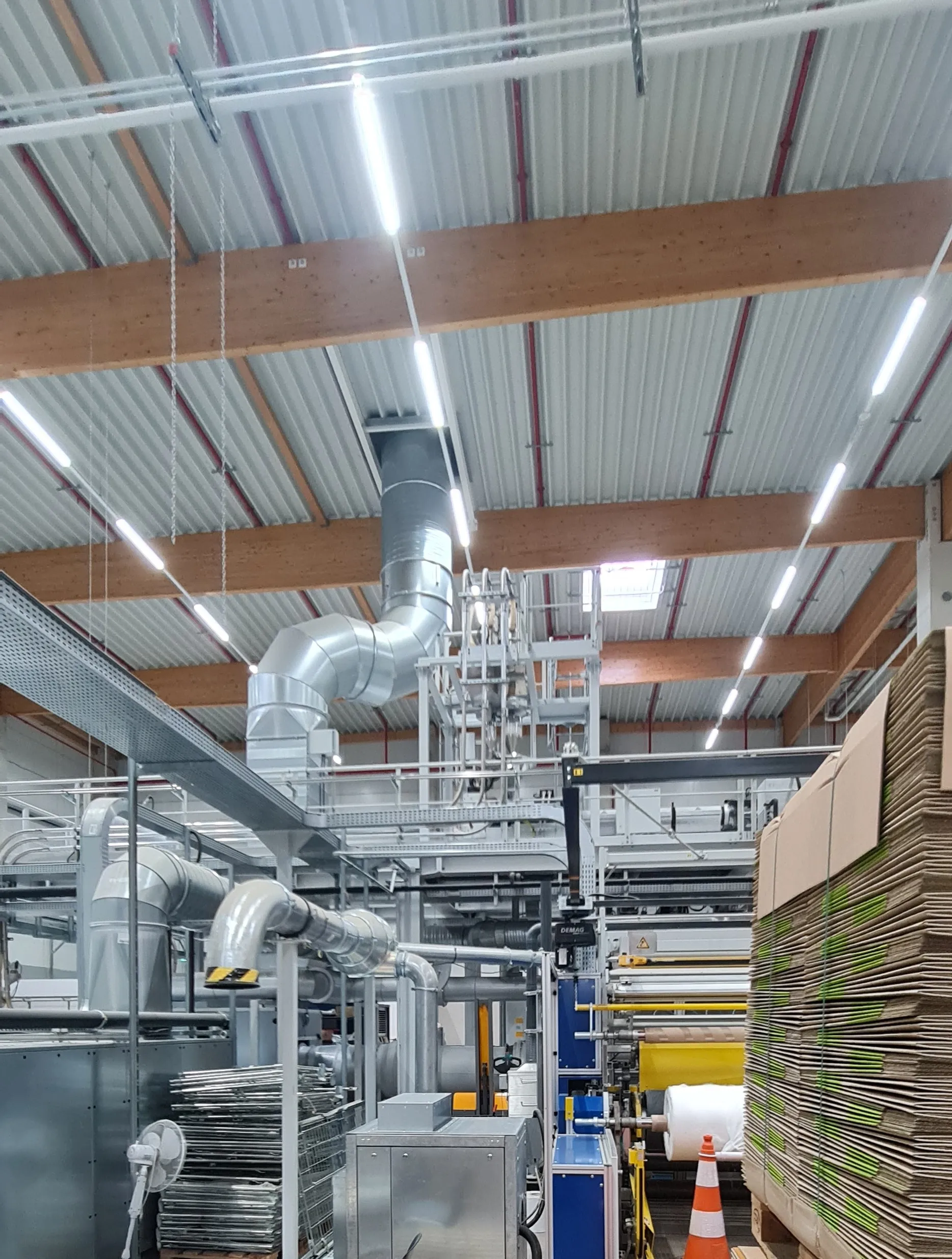

Winder
Contact winder HSP with automatic reel change, inside its safety enclosure.
- Reel Ø
- up to 1250 mm
- Web
- 1700 mm
Unit 11
Est. value €160K–€220K

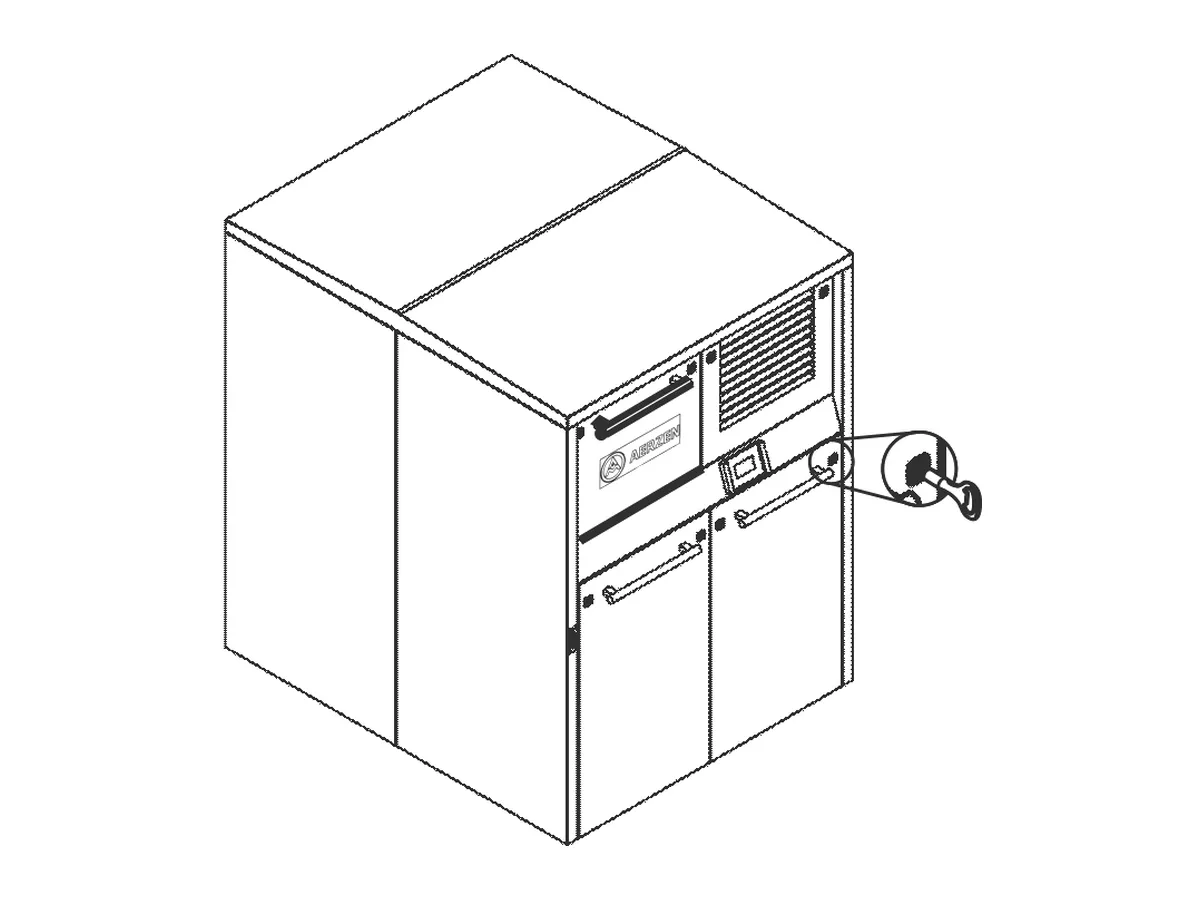

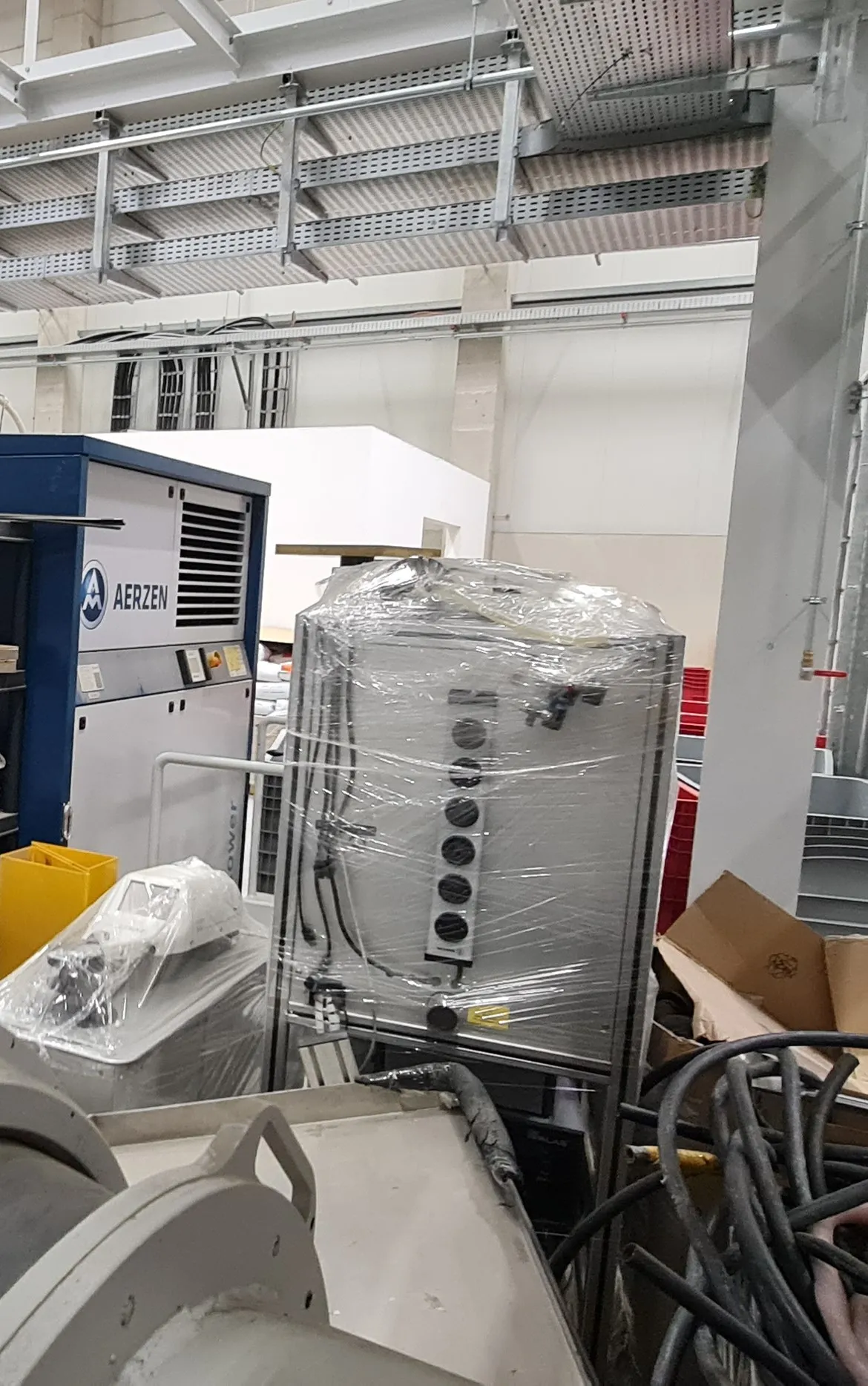

Compressed & hot-air system
Compressor on the ground, electric process-air heater on the deck.
- Air
- 2,000 Nm³/h
- Heater
- 172 kW
Also included
Est. value €110K–€150K

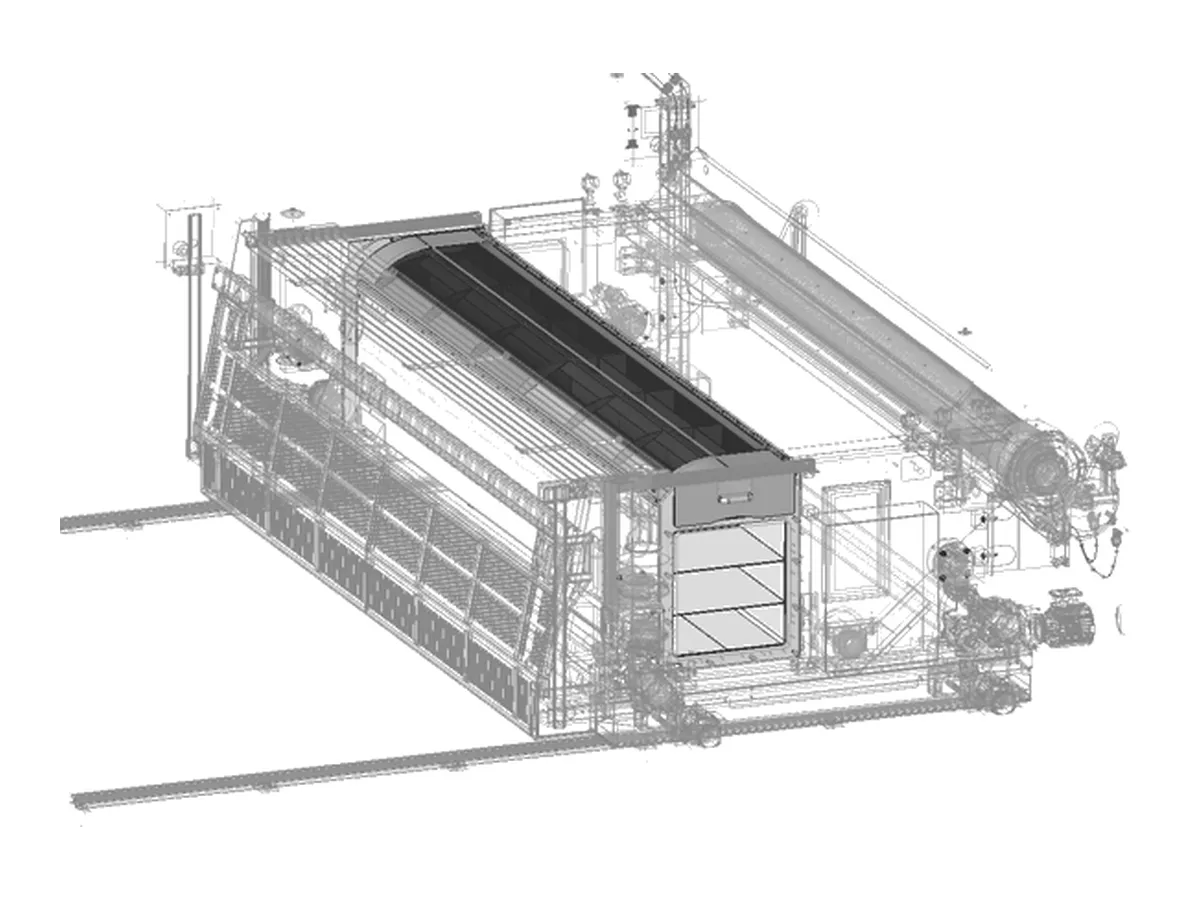

Suction-air system
Radial fan under the platform pulls the fibres onto the belt; the air leaves through a 15.5 m stack.
- Flow
- 34,000 m³/h
- Power
- 132 kW
Also included

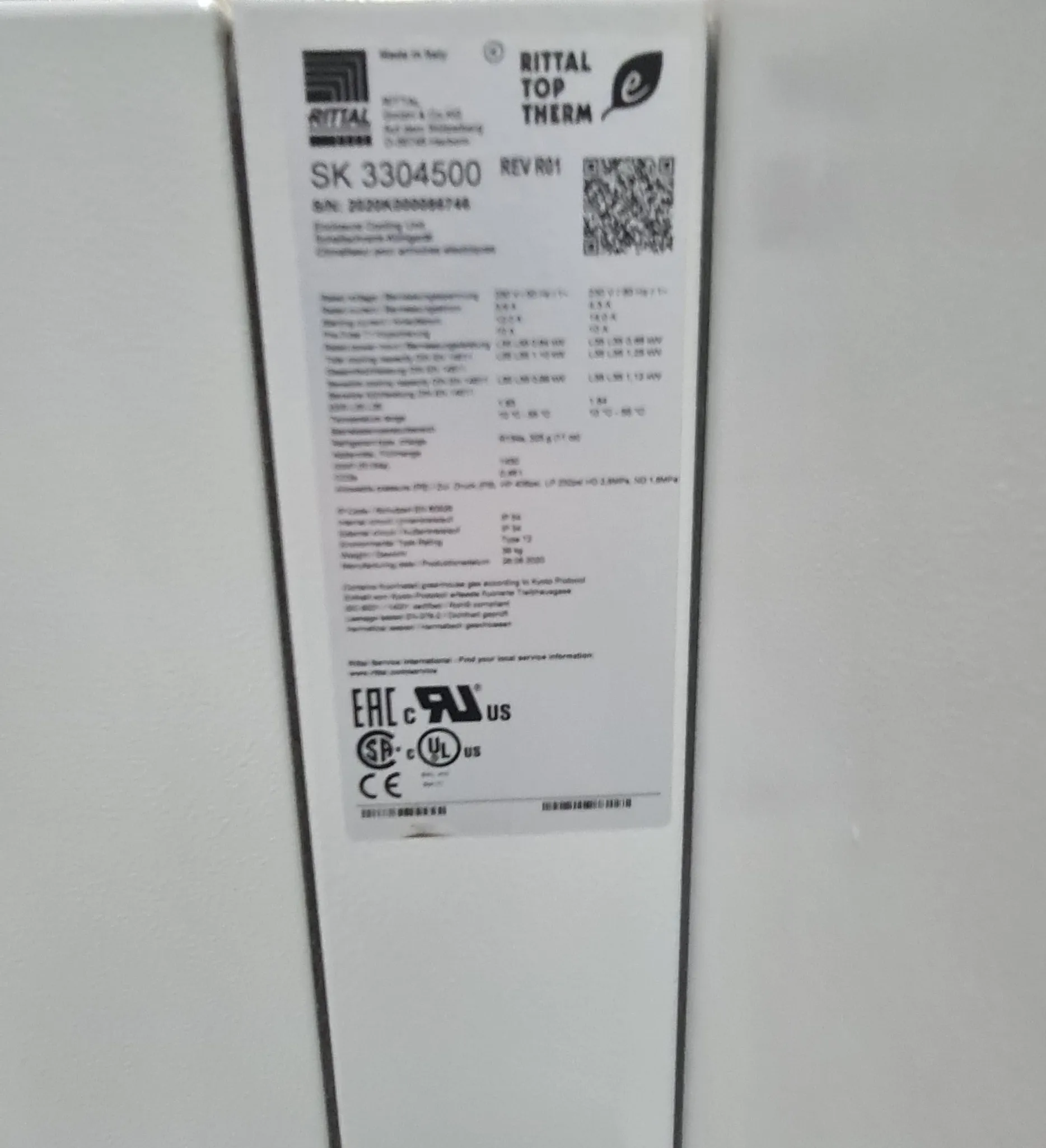

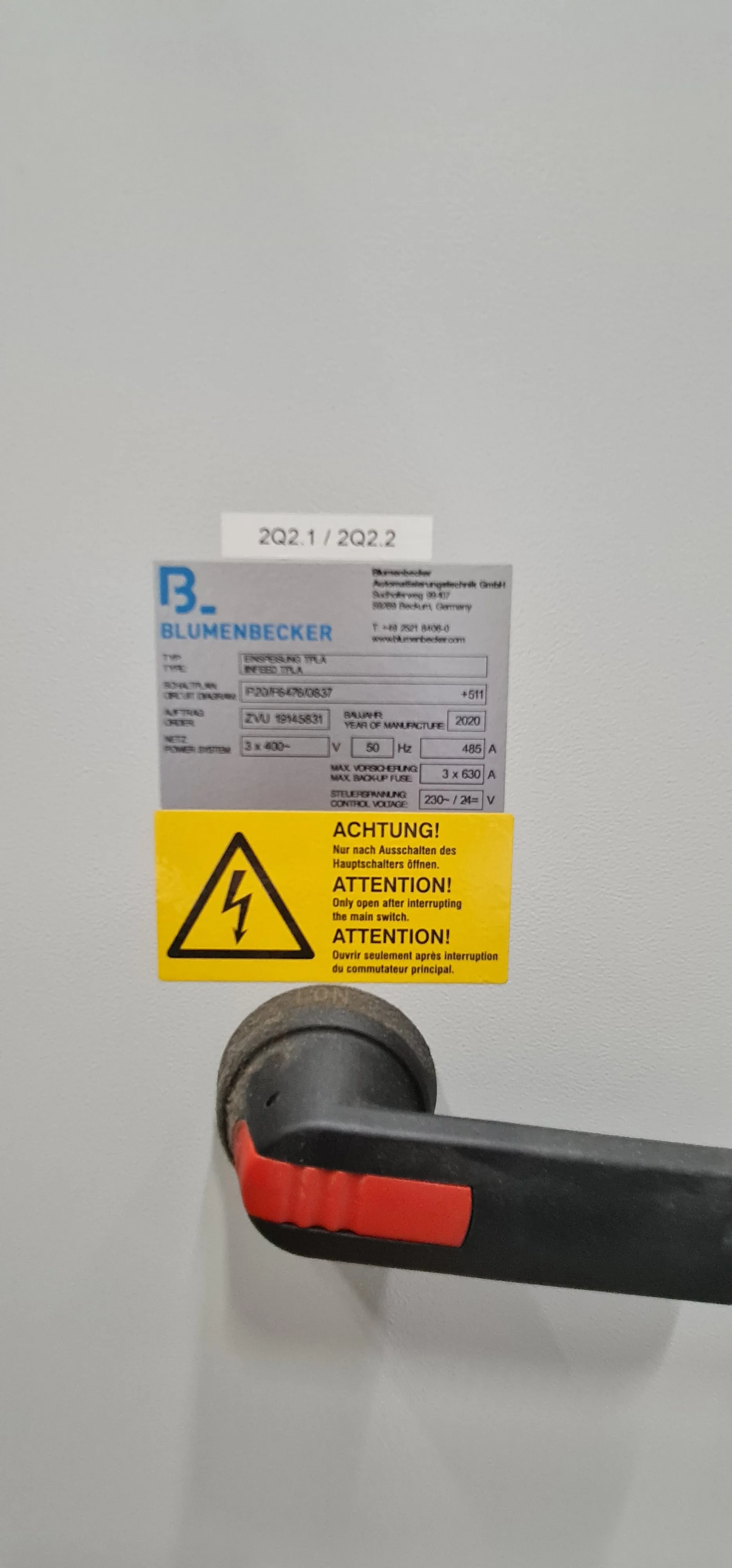

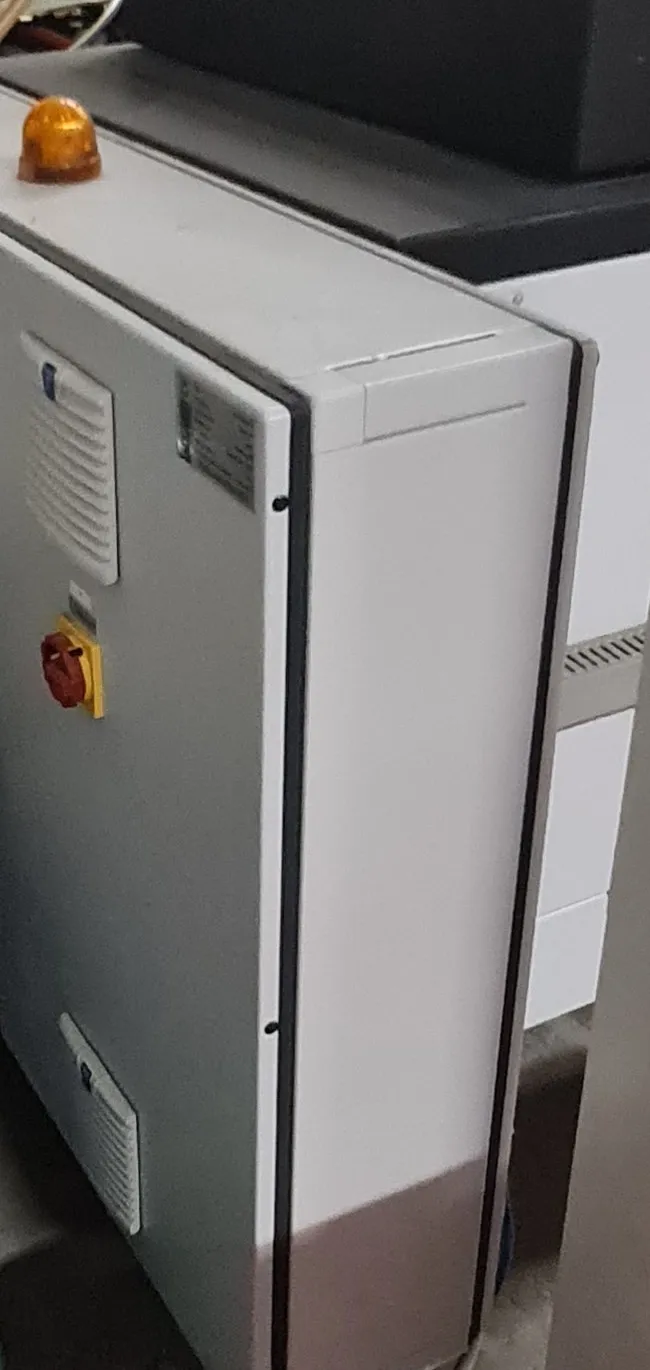

Control cabinets
Drive, heating, dosing, forming and winder cabinets, plus server and air conditioning.
Also included
Est. value €70K–€90K

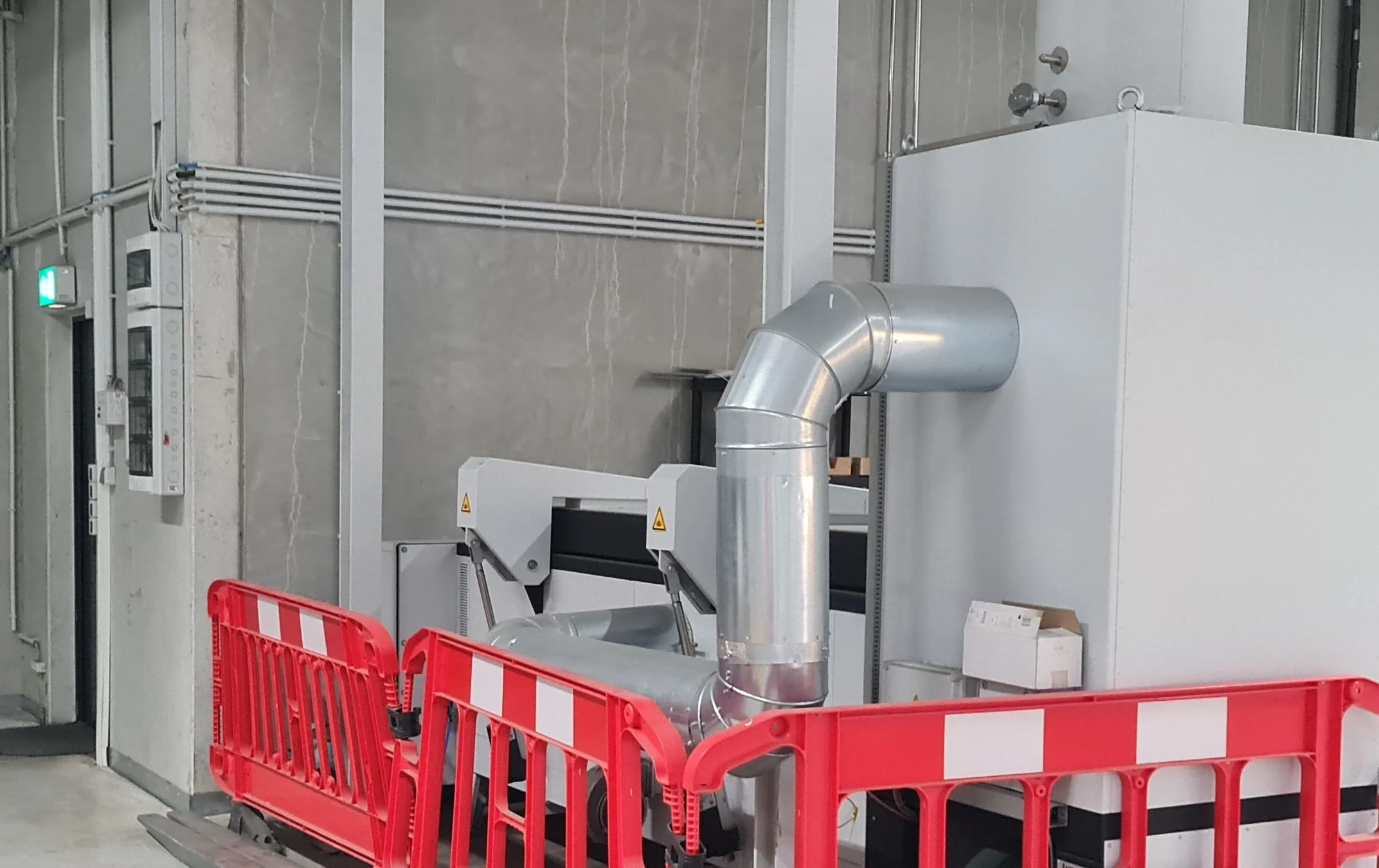

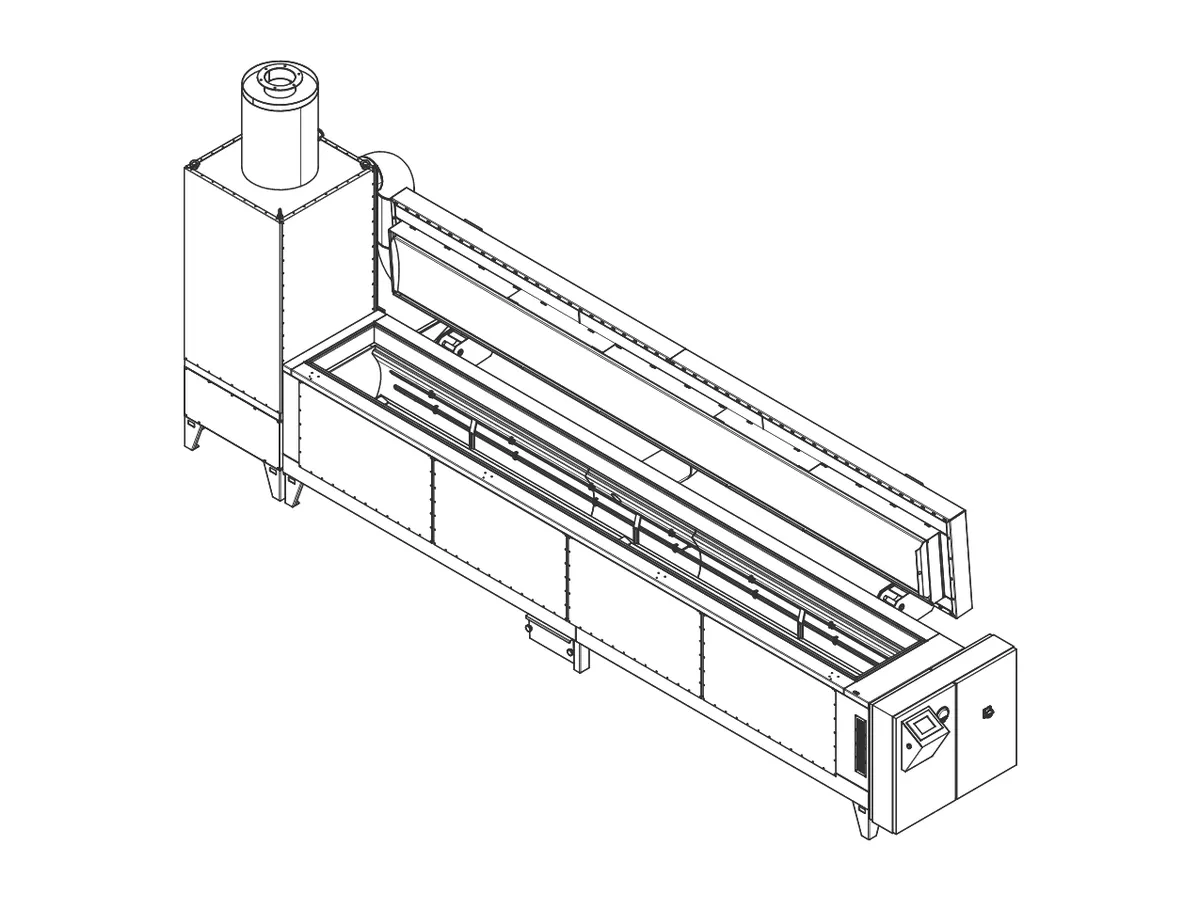

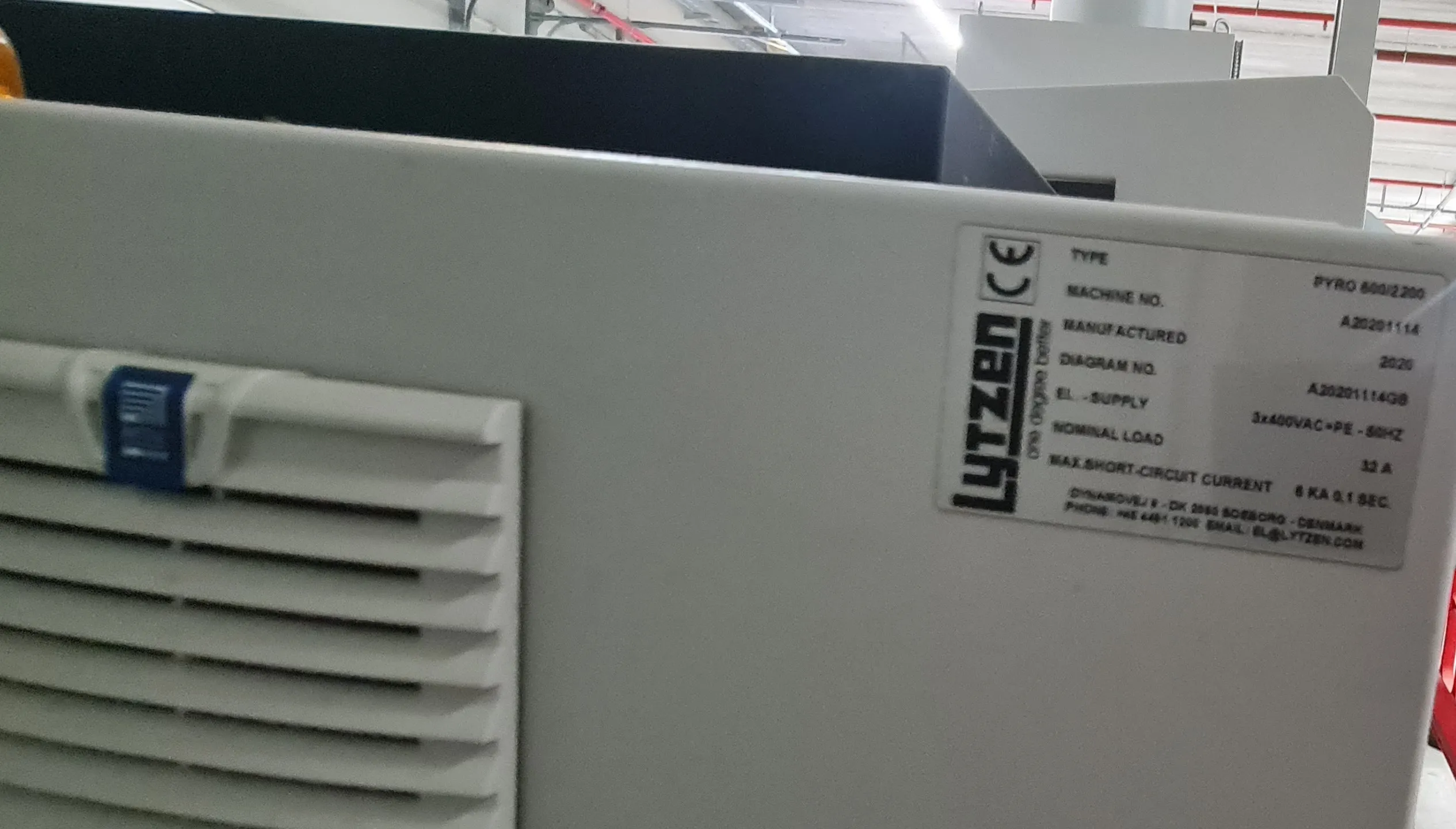

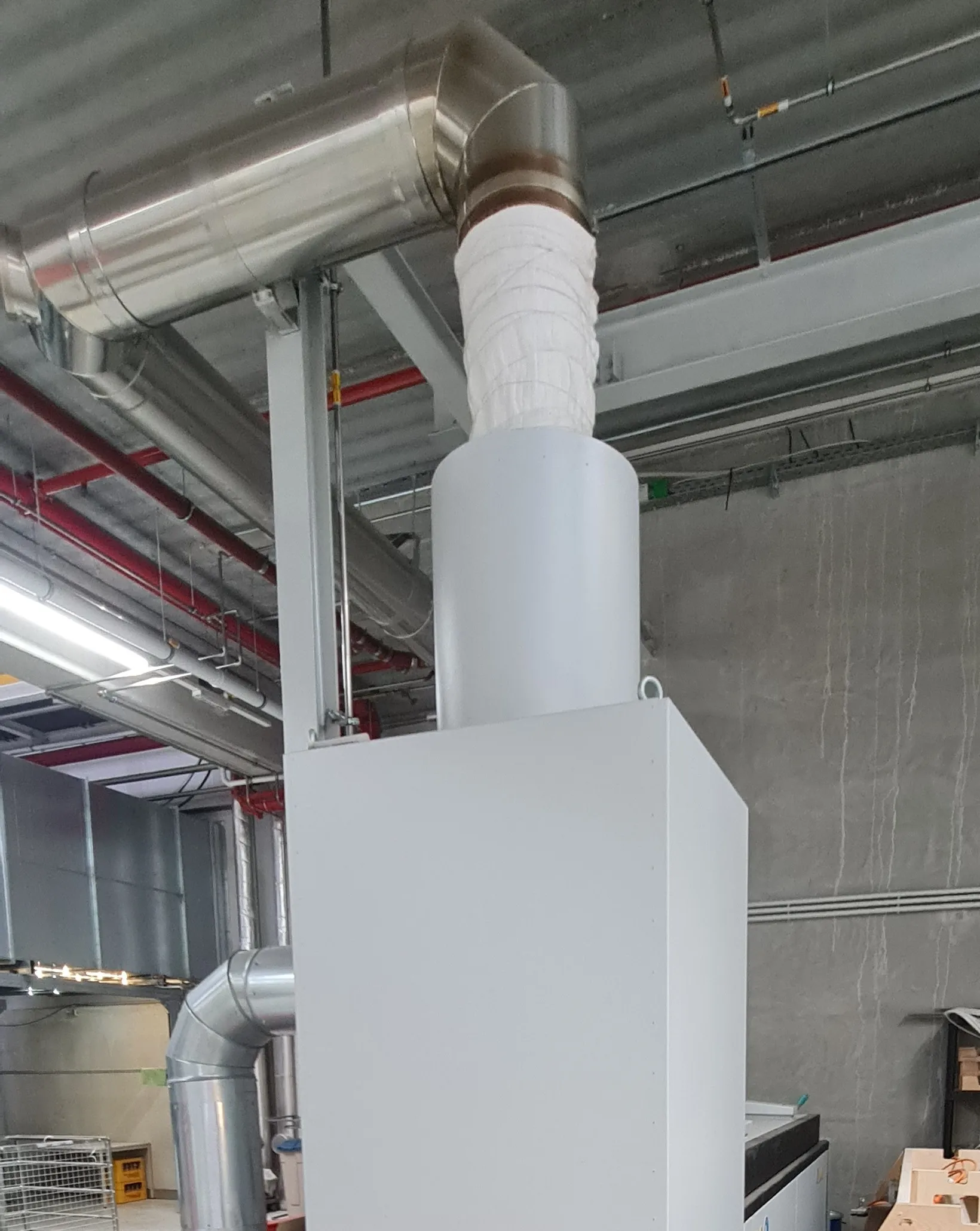

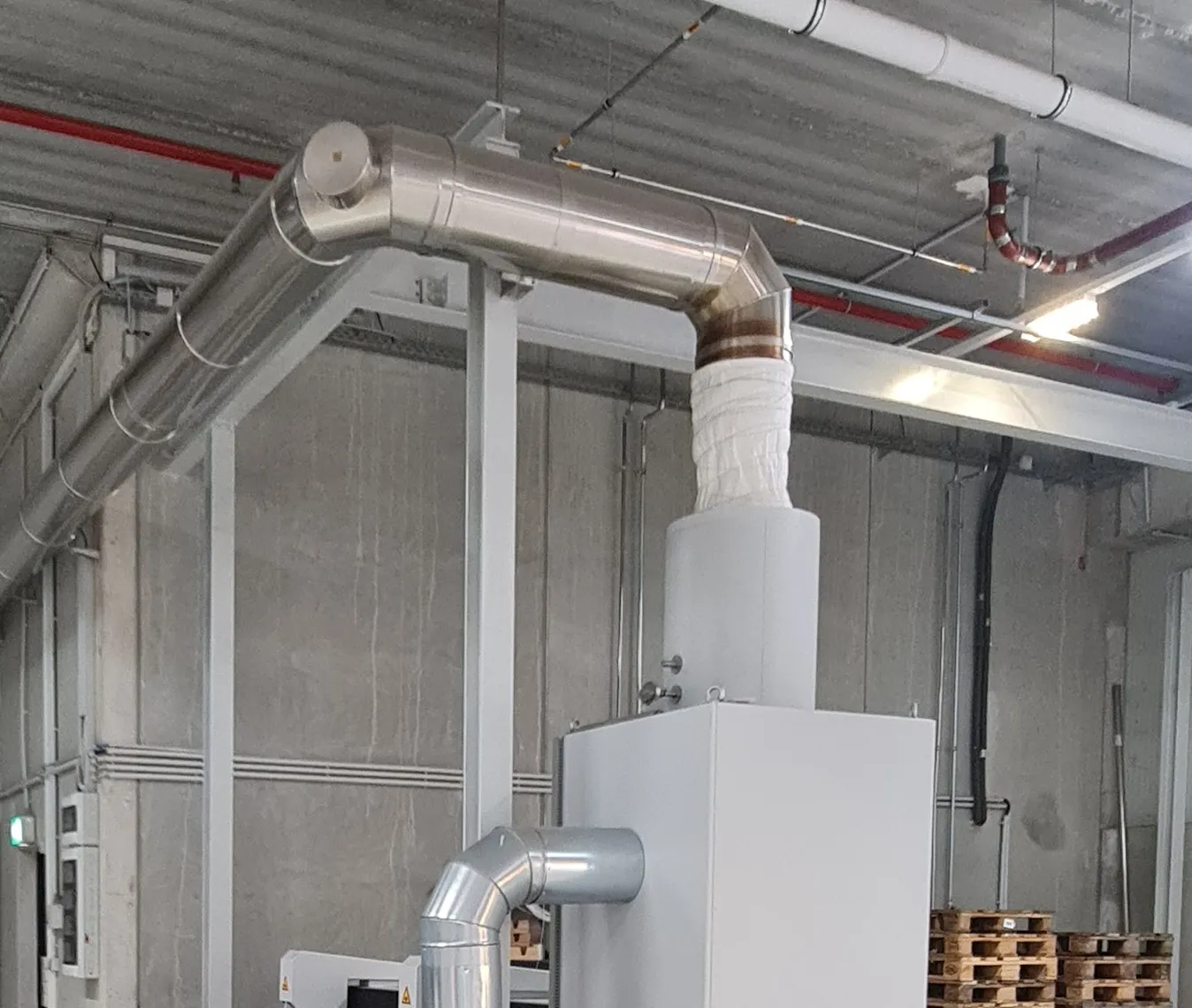

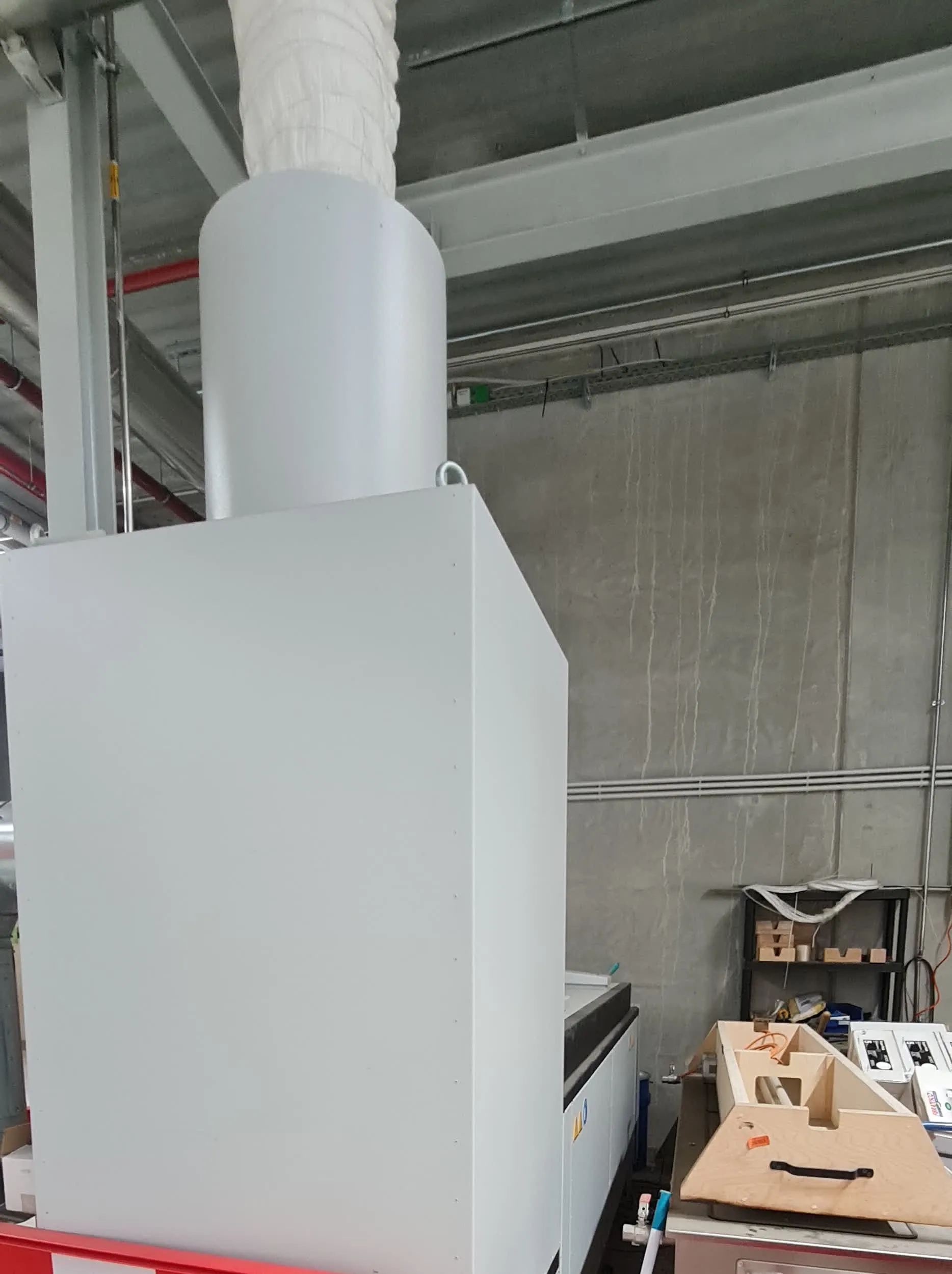

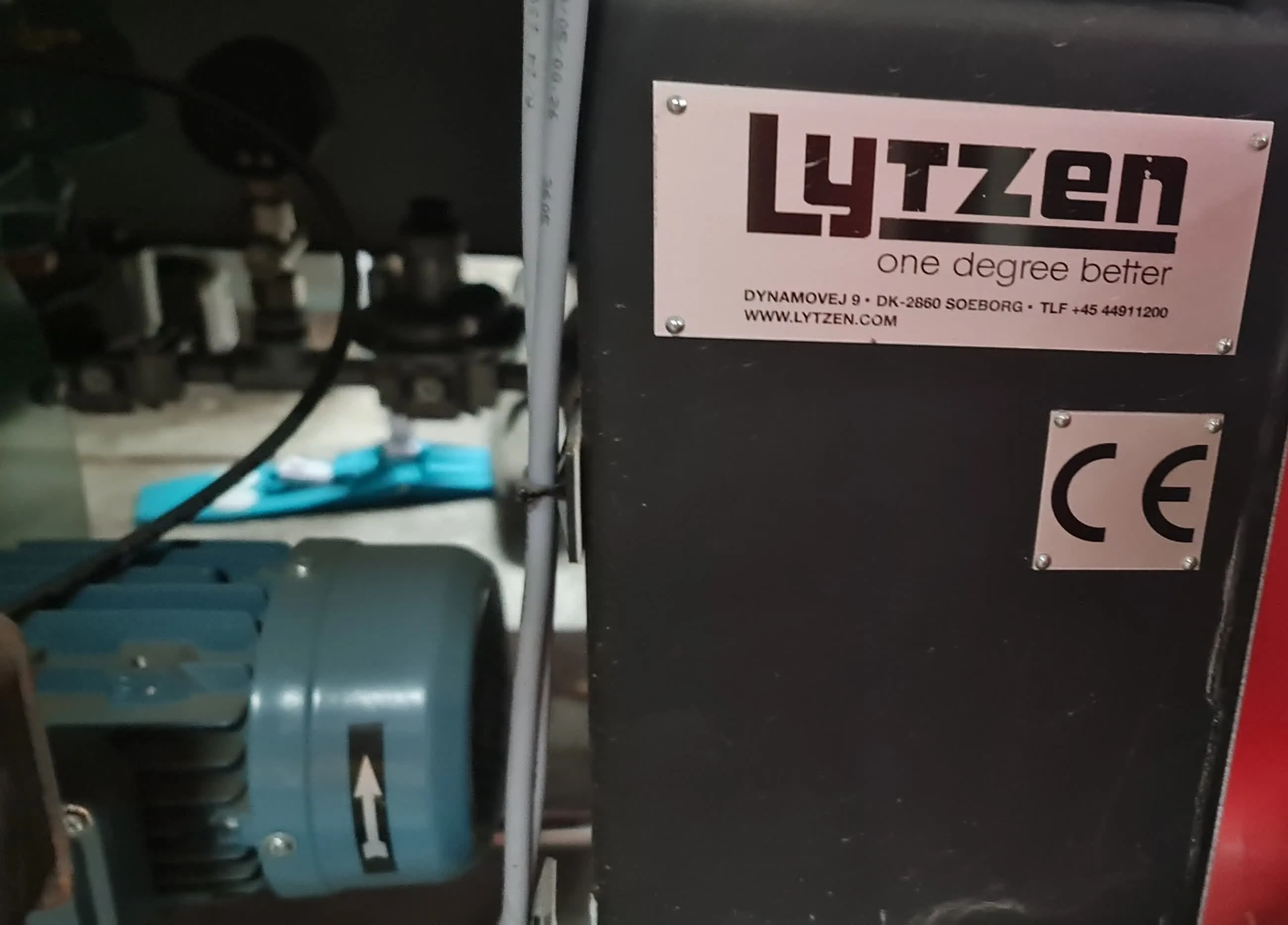

Burn-off oven
Lytzen PYRO 600/2200 for cleaning die parts and filters: electric chamber to 500 °C with gas afterburner. Built for this line.
- Chamber
- 2200 mm
- Max. temp
- 500 °C
The whole line
Main units, est. value €2.16M–€2.93M
Complete line
All units shown above and the Reifenhäuser documentation. Dismantled under the supervision of the manufacturer's audit team by certified personnel. Packed and ready for shipment.
- Price
- €890,000
- Terms
- excl. VAT, ex-works
Our market estimates, not Reifenhäuser prices.
Request the technical file
Main components
Most expensive components
You buy the whole line. This list shows its most expensive components with our market estimates. These are not Reifenhäuser prices.
Sum of the estimated ranges €2.16M–€2.93M
05
Spin beam and MB 1600 die
1600 mm width, 50 holes per inch. The most expensive single part of the line.
€765K–€1.04M
02
Extruder RT 1101
Ø100 mm screw, L/D 30. Tested to 135 °C in the December 2025 audit.
€275K–€375K
10
Contact winder HSP
Automatic reel change, 1700 mm web, reels up to 1250 mm.
€195K–€265K
08
Screen belt machine
Vacuum belt that forms the web from the fibres. Tested OK in the audit.
€170K–€230K
11
Compressed and hot-air system
Roots compressor, 2,000 Nm³/h, with a 172 kW heater. Tested OK in the audit.
€160K–€220K
01
3-component dosing unit
Gravimetric dosing, ±0.5–1 % accuracy, with feed hoppers.
€135K–€185K
A
Suction-air system
Radial fan, 34,000 m³/h at 10,000 Pa, 132 kW. Tested OK in the audit.
€110K–€150K
09
Electrostatic charging unit
30 kV DC charging for high-efficiency filtration media.
€100K–€140K
04
Precision melt pump
Feeds the melt into the die at a constant rate, which keeps the basis weight even across the width.
€95K–€125K
C
Burn-off oven Lytzen PYRO 600/2200
Supplied with this line. Electric chamber up to 500 °C, gas afterburner, inert-gas purge.
€70K–€90K
03
Ø80 mm screen changer
Continuous screen changer before the melt pump.
€45K–€65K
06
Hot-air piping
Insulated ducts from the heater to the die, made to fit this line.
€40K–€50K

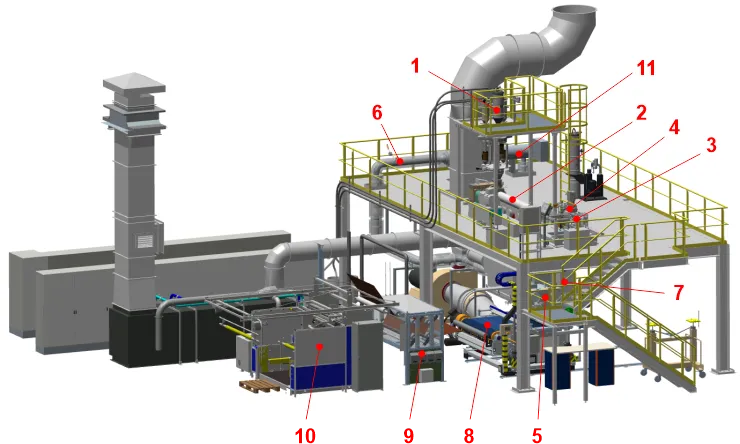

Main units of the MB 1600 line, Reifenhäuser drawing
Also included in the delivery

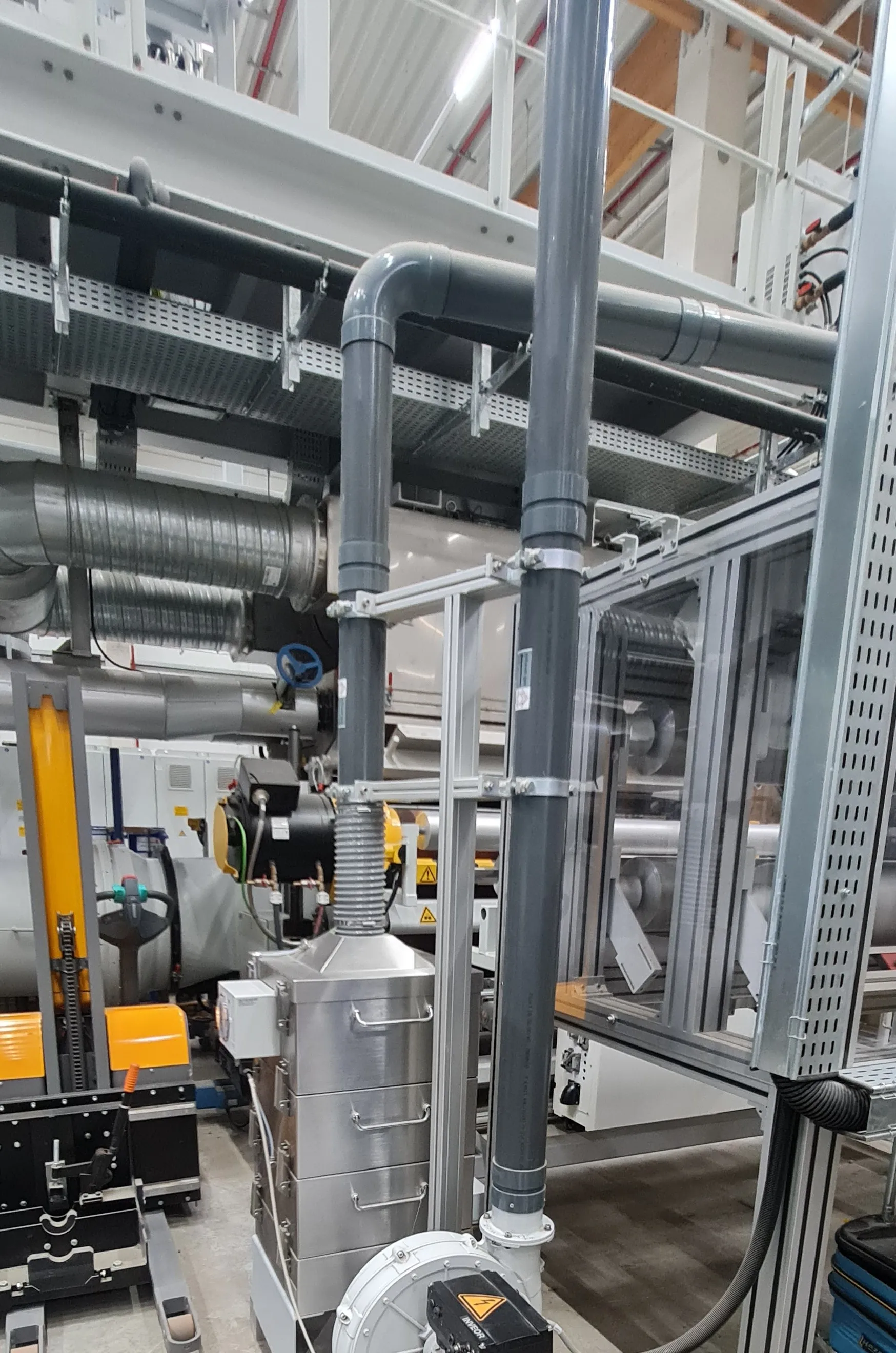

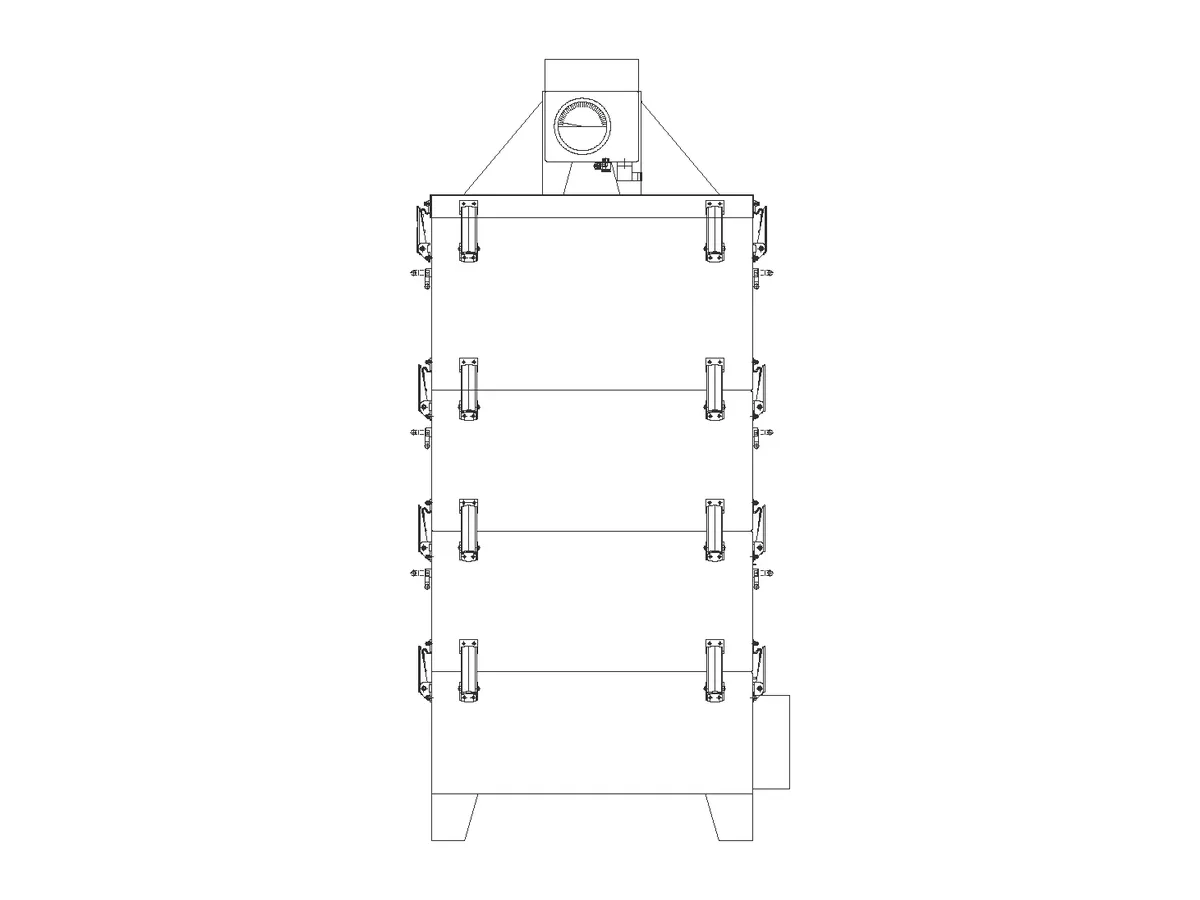

Ozone filter
Catalytic filter (type KAT-II) that removes ozone from the charging unit's exhaust air, with over 99% removal efficiency.

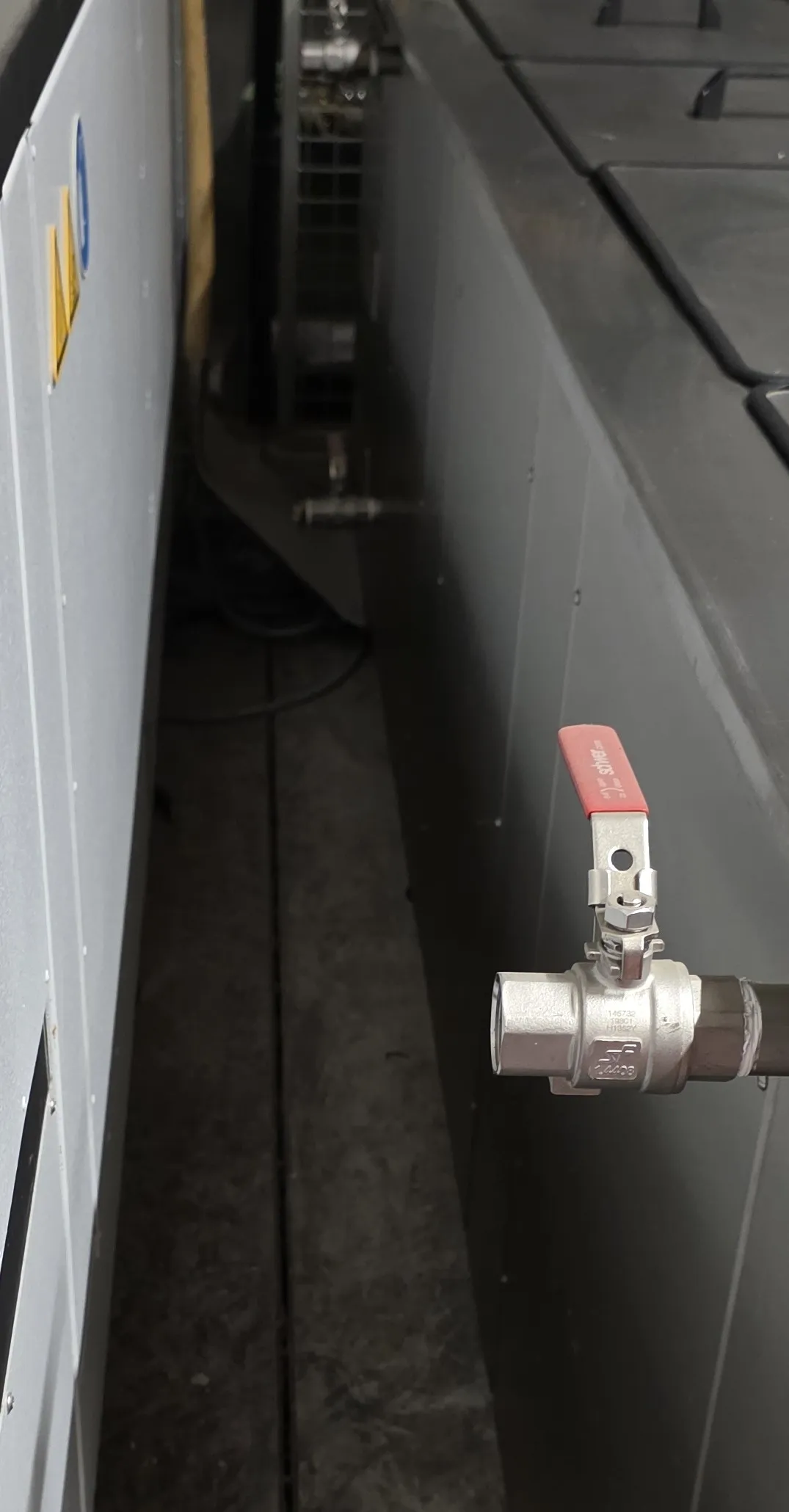

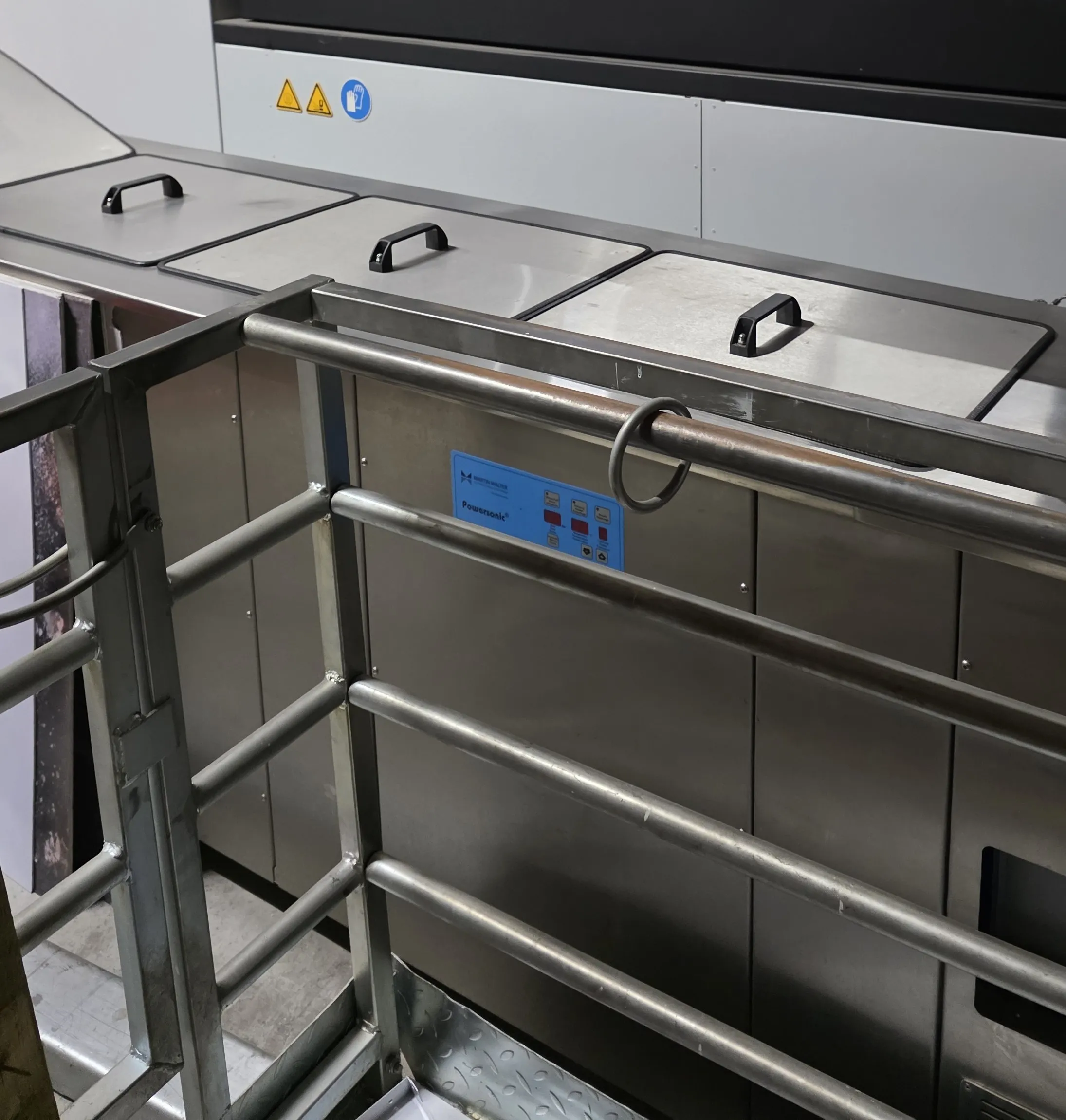

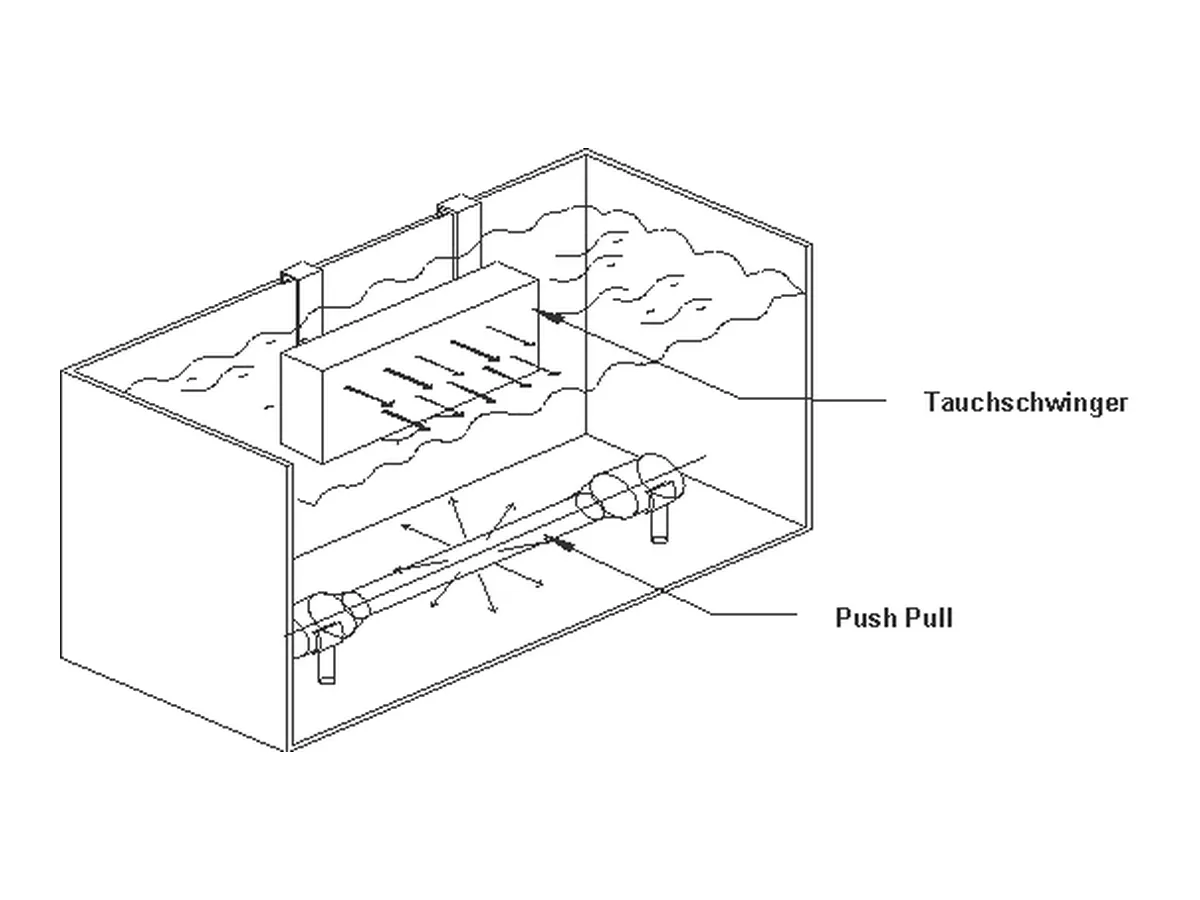

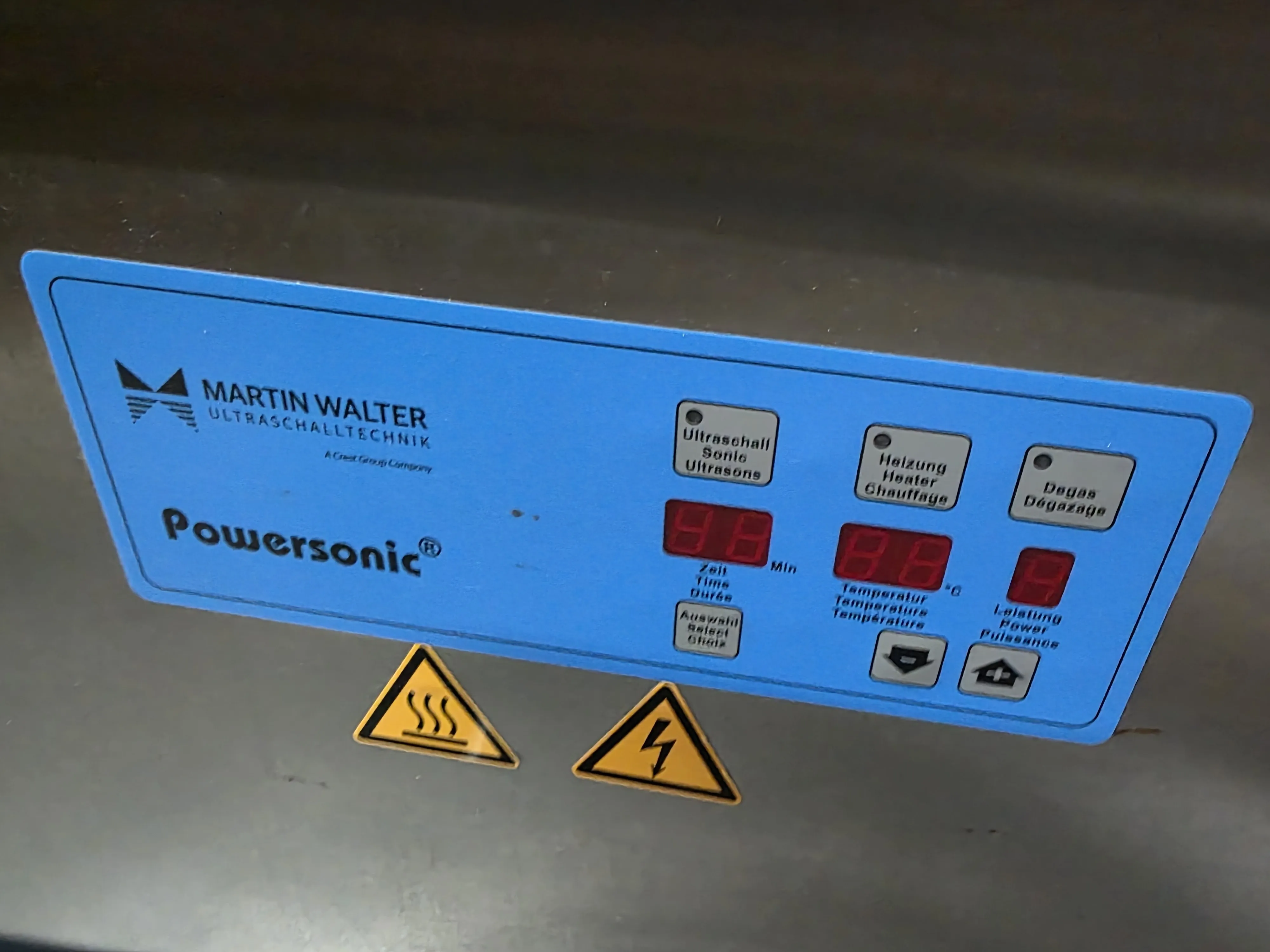

Ultrasonic cleaning unit
Ultrasonic bath with rinse tank for cleaning die and filter parts.

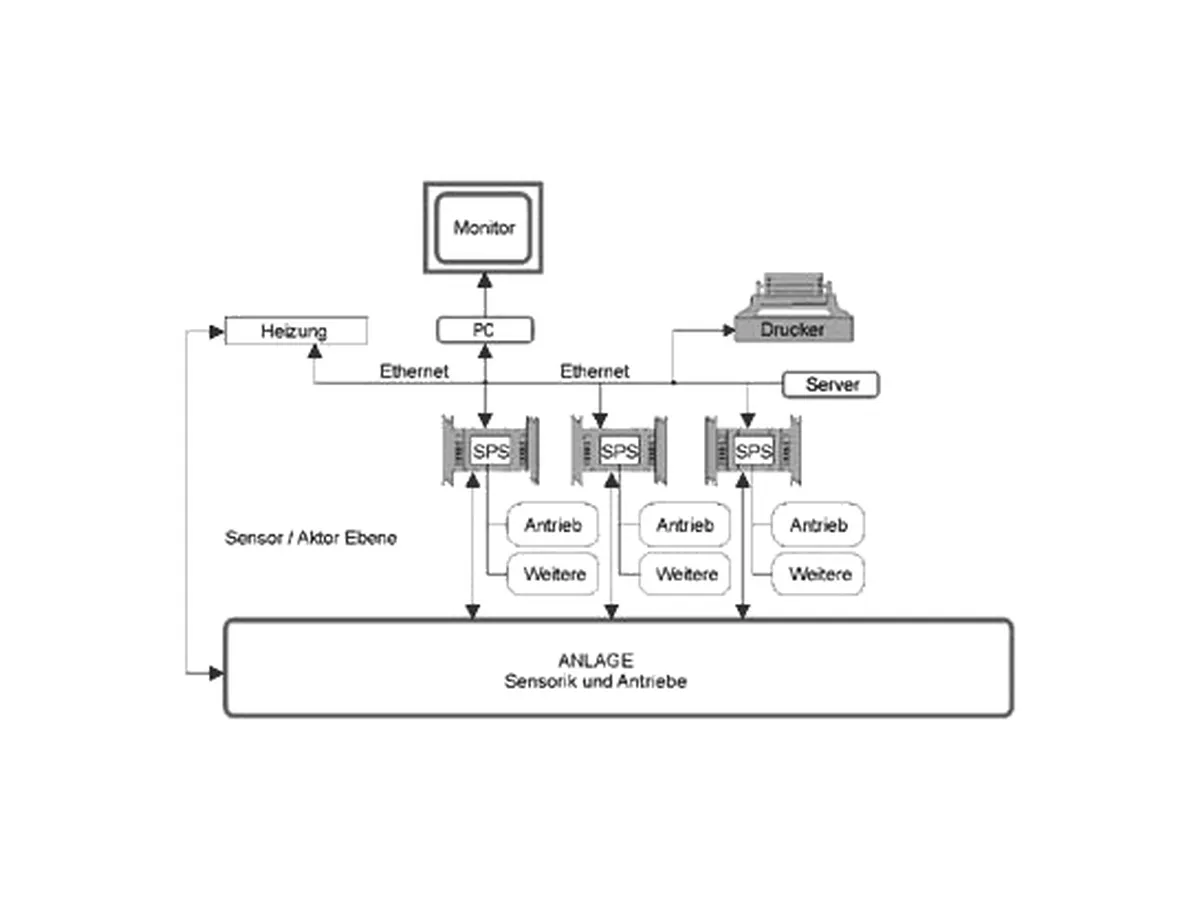

Process control system (PLS)
Networked process control system with save and load recipe management and parameter tables.

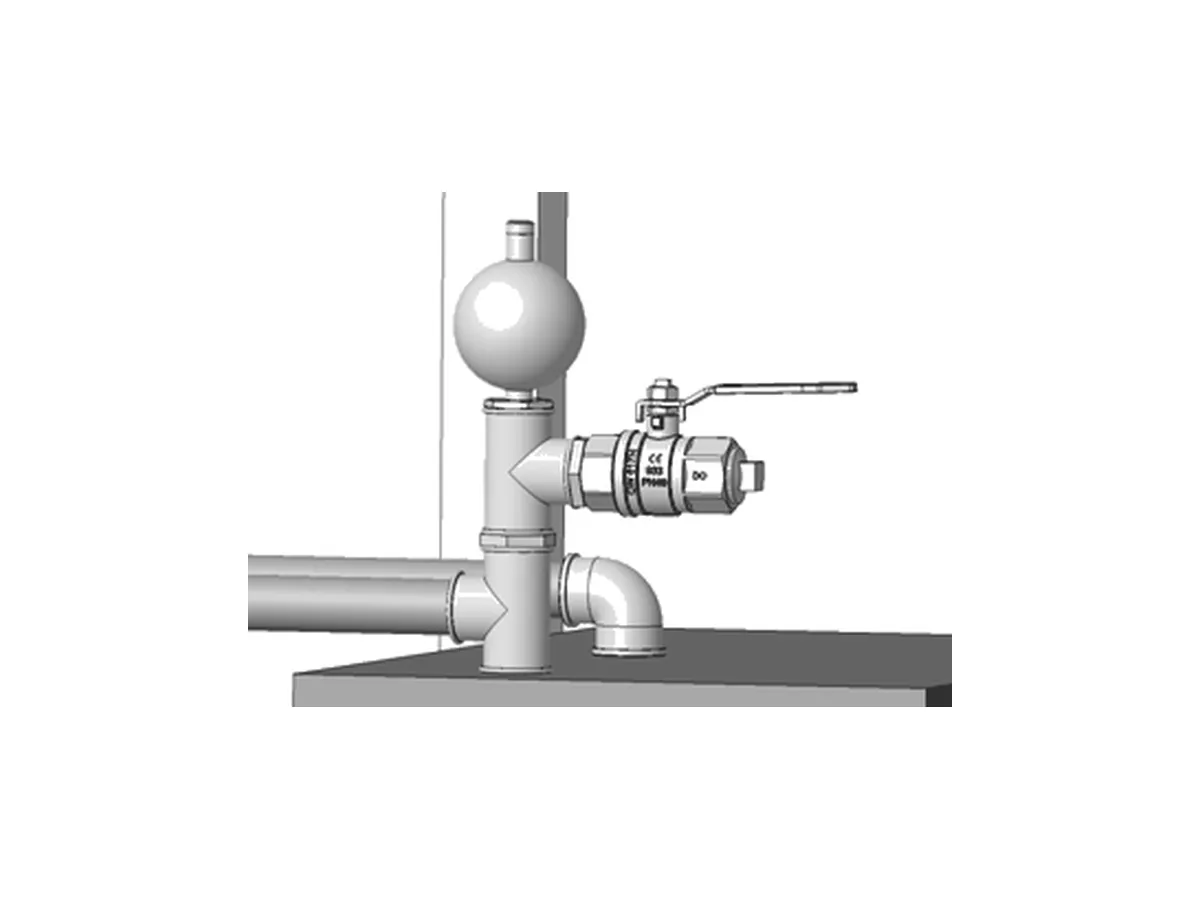

Heat exchanger for the belt-drive torque motors
Dedicated cooling-water circuit that keeps the screen-belt drive's torque motors at safe operating temperature.

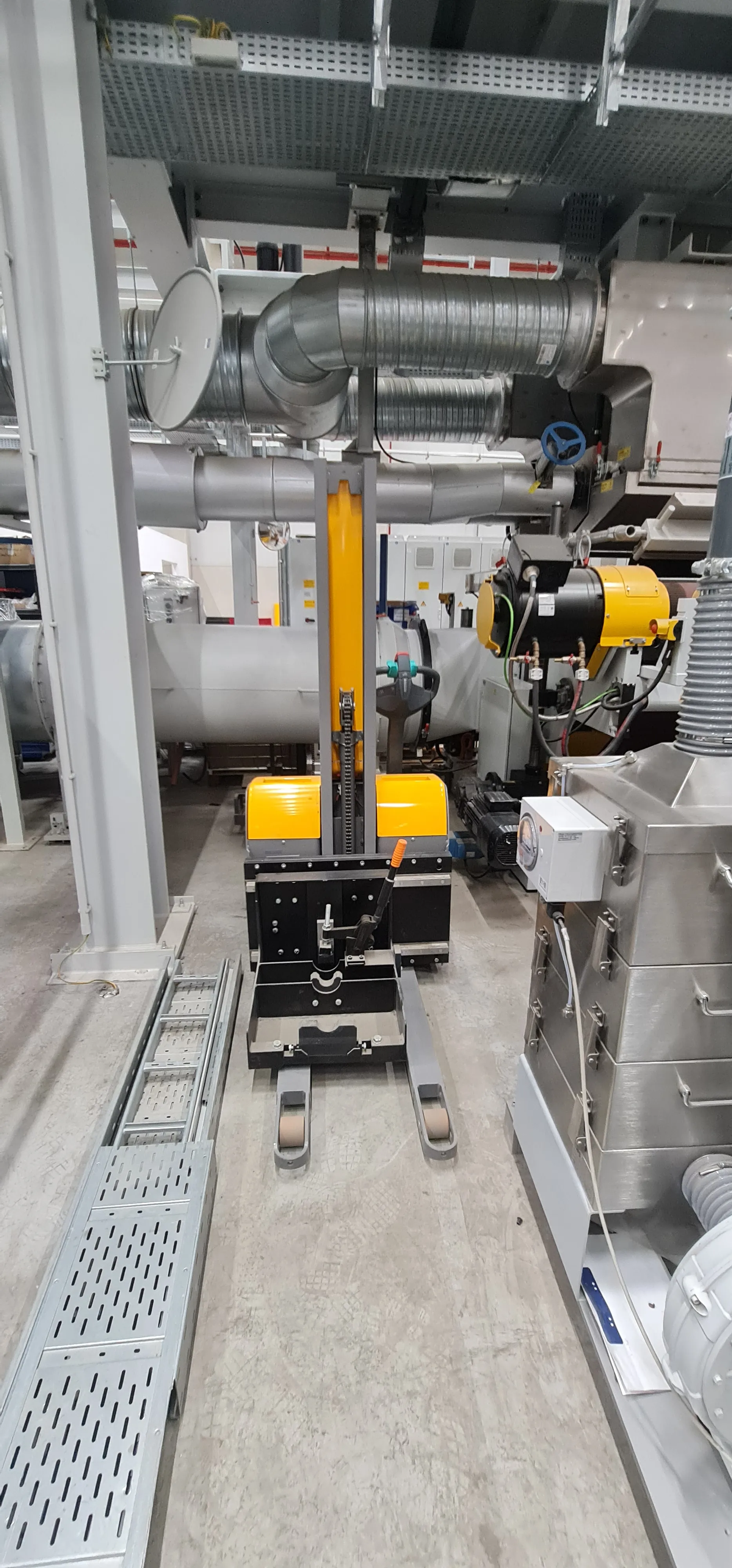

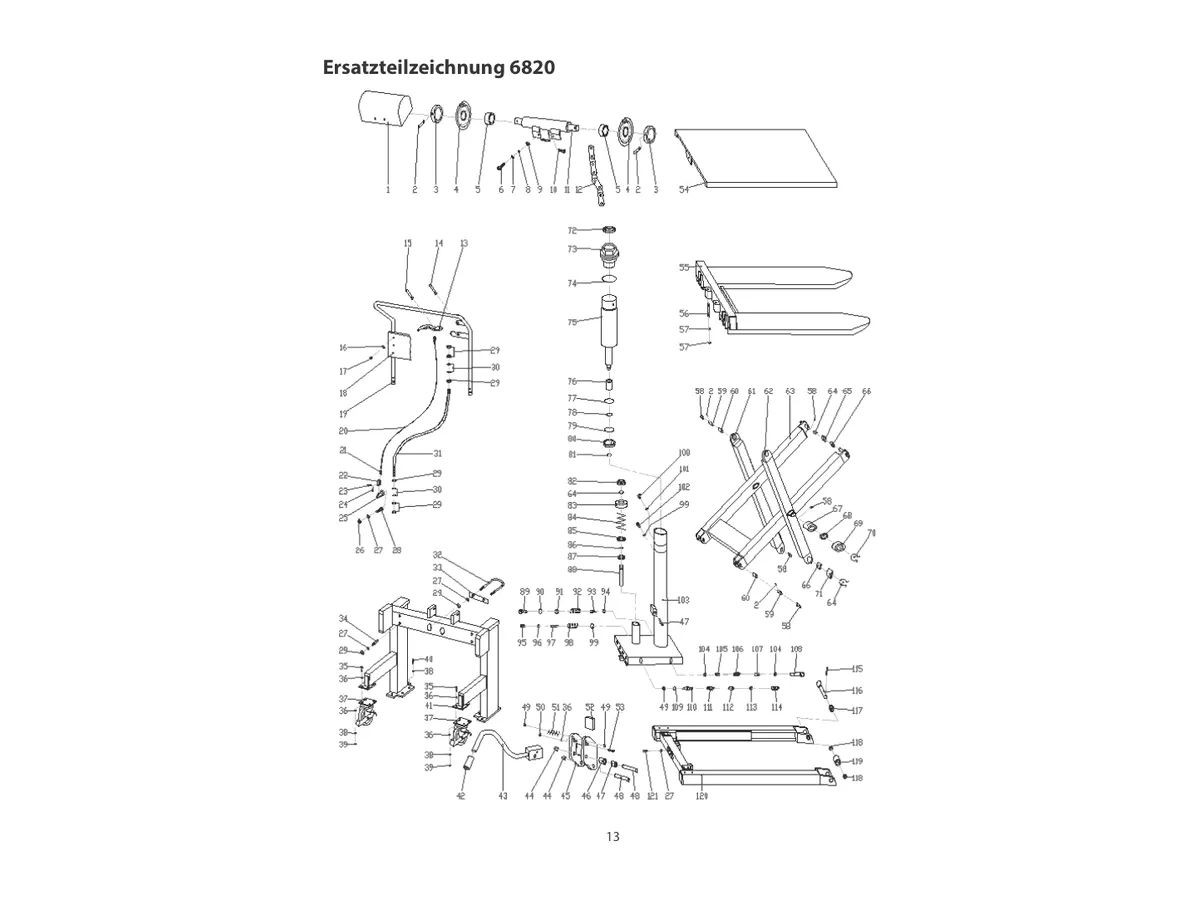

Scissor-lift trolley
Height-adjustable trolley for handling belt and die parts during maintenance.

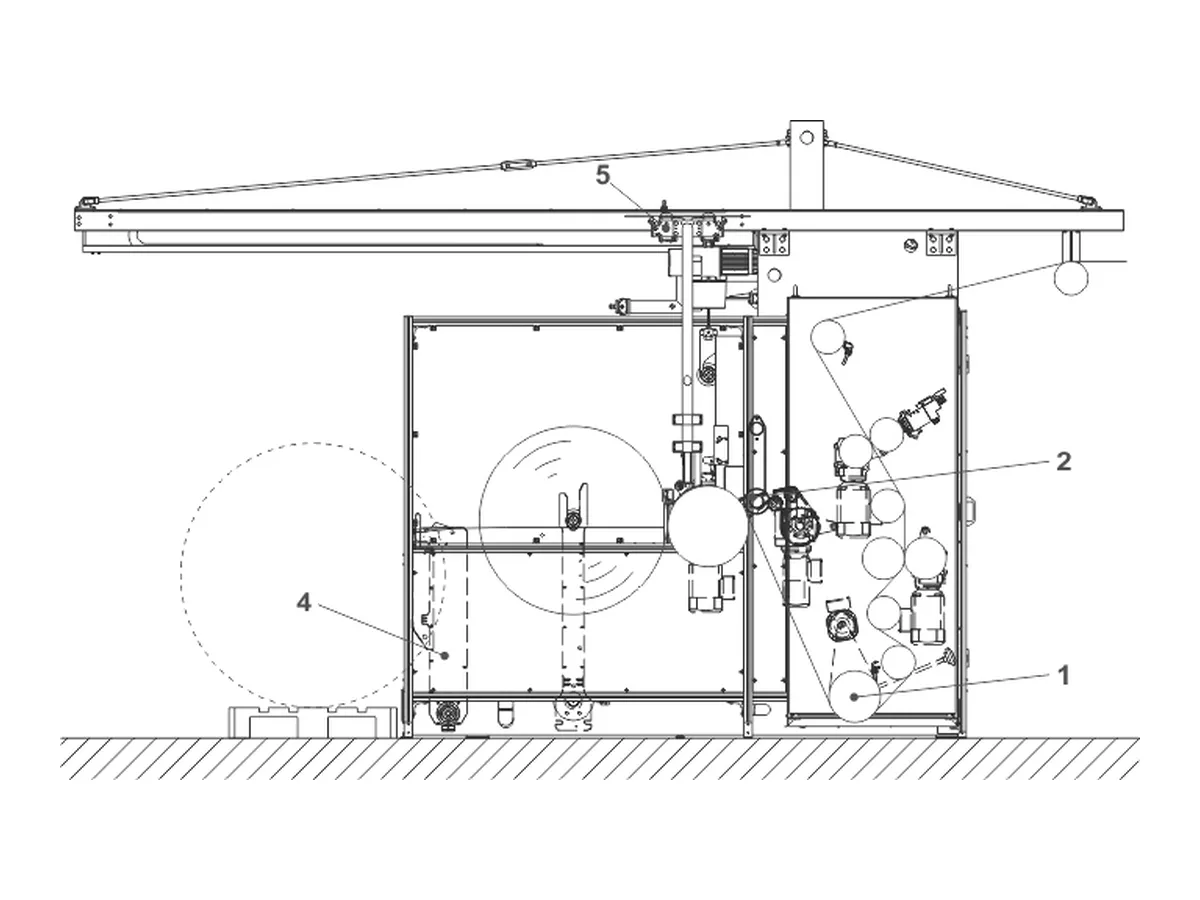

Crane attachment on the winder
Frame-mounted crane on the winder for lifting empty winding shafts into the storage position.

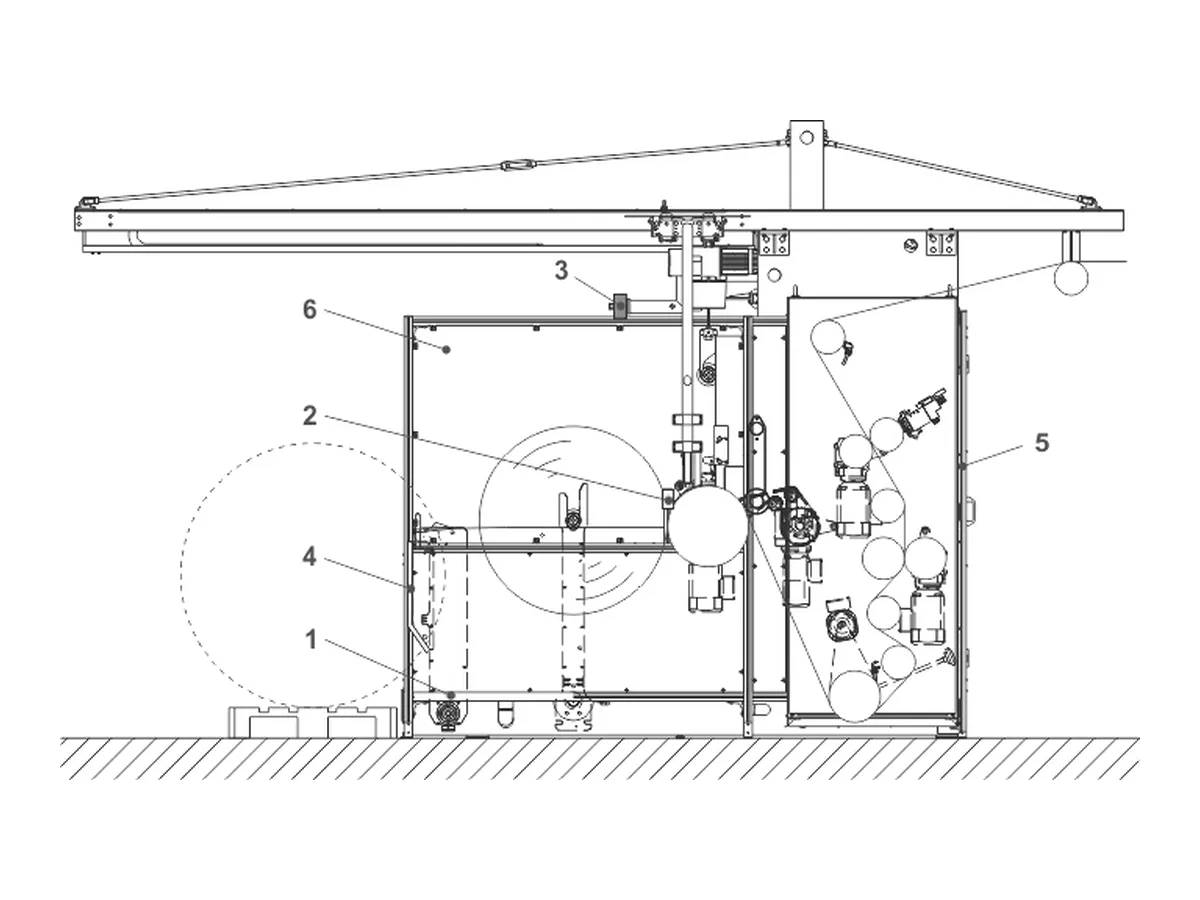

Slitting device
Traversing slitting knives that trim the web to the required edge and product widths.
Cross-cutting device
Pneumatic cutter that separates the finished roll from the new winding shaft during reel change.
Technical data
Main parameters
- Working width
- 1600 mm
- Suitable material
- PP, MFI > 400 g/10 min
- Output
- up to 65 kg/h per metre
- Basis weight
- 10–80 g/m²
- Line speed
- 5–80 m/min
- Die
- MB 1600, 50 holes/inch
- Extruder
- RT 1101-1-100-30D, L/D 30
- Process-air heater
- 172 kW
All specifications
- Max. reel diameter
- 1250 mm
- Web width
- 1700 mm
- Winding tension
- 0–160 N
- Winder
- Contact winder HSP (SFA-HSP-1-1800)
- Electrostatic charging
- 30 kV DC
- Suction fan
- 34,000 m³/h, 132 kW
- Extruder drive power
- 89 kW
- Extruder heating power
- approx. 76 kW
- Max. melt pressure
- approx. 300 bar
Applications
Products and materials
The line runs PP as delivered. Reifenhäuser's documentation for this platform lists the other materials below and the add-ons each of them needs.
PP
Possible
Vacuum cleaner bags
No modification needed.
PP
Possible
Filter media: HEPA, pleatable, HVAC
Needs: hydrocharging (> E11 for HEPA); pleatable grade to be verified
PP
Possible
Absorbent media
No modification needed.
PP
Possible
Wipes: cleaning and abrasive
Needs: hydrophilic spray system (cleaning); unwinder for lamination (abrasive)
PP
Possible
Sound absorbers
Needs: dual-drum laydown for enhanced properties
PBT
Possible
Liquid filtration: fuel, blood, water
Needs: dryer and heat-resistant dosing; die tip depending on grade
PE
Possible
Elastic and soft-touch products
No modification needed.
PLA
Possible
Biodegradable and renewable products
Needs: dryer and heat-resistant dosing
PA6
Possible
Liquid filtration: high tensile, hydrophilic
Needs: dryer and heat-resistant dosing
TPU
Possible
Elastic, breathable products and sealings
Needs: dryer and heat-resistant dosing
Vistamaxx®
Possible
High-elasticity products
Needs: best with a multi-row die configuration
PET
Possible
High tensile strength, no heat shrinkage
Needs: best with a single-row die configuration
PPS
Not possible
Hot-gas filtration
Needs: not possible on this platform without major modification

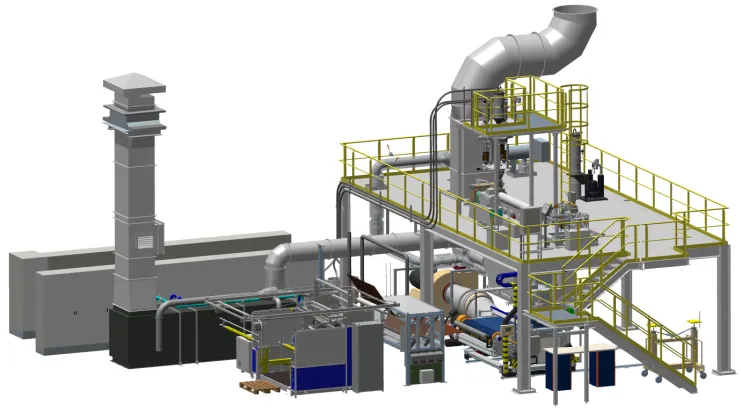

General arrangement of the MB 1600 line, Reifenhäuser drawing
Source: Reifenhäuser Reicofil, “Alternative products and resins for the REICOFIL Melt Blown process”, 02.07.2020. The add-ons are the manufacturer's requirements and are not installed on this line.
Manufacturer audit
Reifenhäuser report on the condition of the line, 18.12.2025
Two Reifenhäuser Reicofil engineers inspected the line on 17 and 18 December 2025. Below are quotes from their report. Reifenhäuser uses the term “used condition” for any line outside its own factory.
01
“Based on the visual inspection performed, the line appears to be in very good used condition. No corrosion or damaged components were identified in the steel structure.”
Visit report, final assessment
02
“The melt-conveying components (extruder and melt pump) show a very low operating time of 205 hours.”
Visit report, final assessment
03
“…all air-handling fans and their associated heaters that were included in the OK checks operated as intended.”
Visit report, final assessment
Visit date
17–18.12.2025
Tested in the audit
- Extruder heating OK
- Dosing unit OK
- Compressed-air heater OK
- Suction fan (34,000 m³/h) OK
- Web forming machine OK
We send the full report on request.

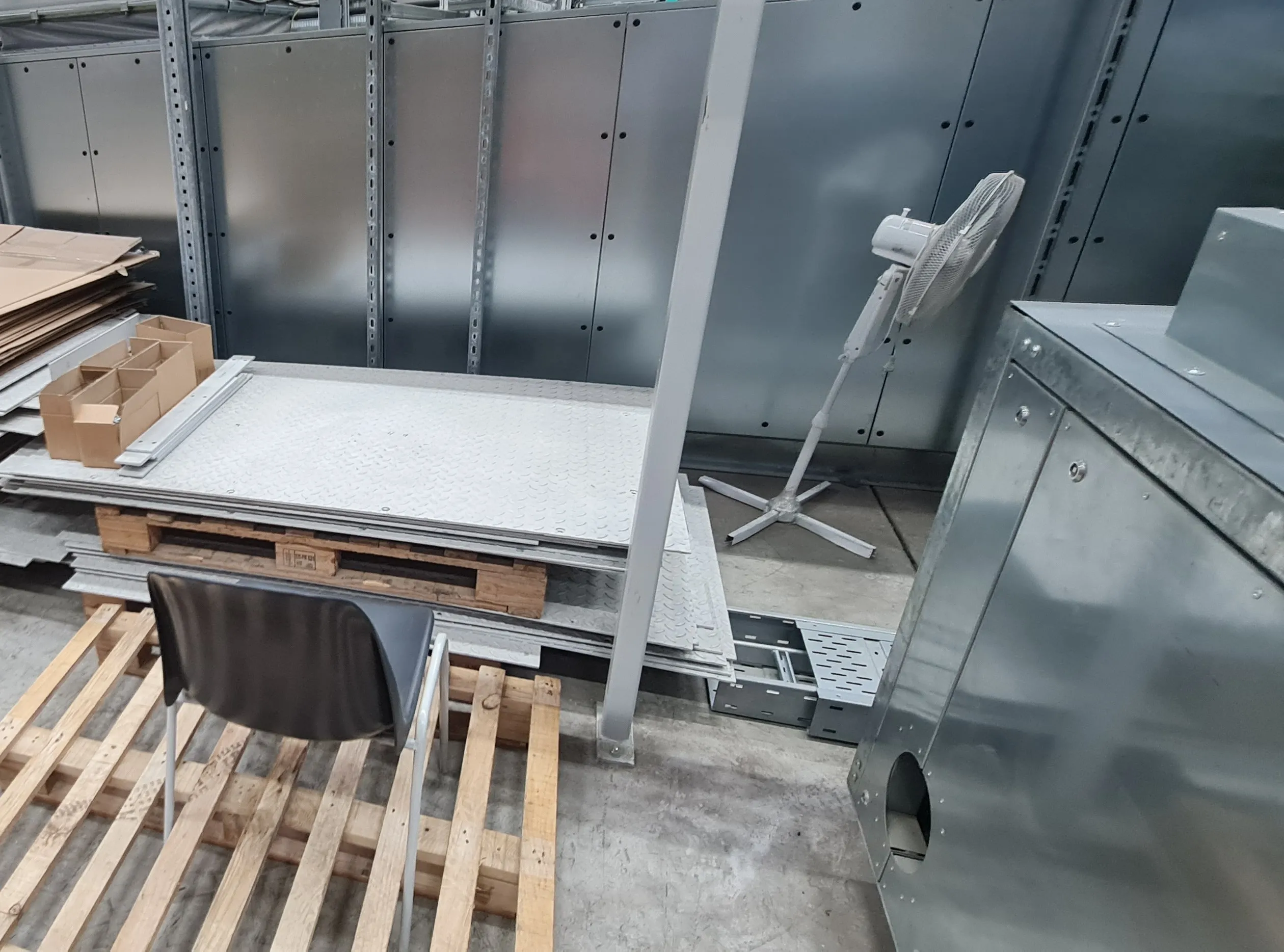

Condition and logistics
Packed at our warehouse in Częstochowa
- Where
- INTER-PLAST warehouse, Częstochowa, Poland
- State
- Dismantled under the supervision of the manufacturer's audit team by personnel certified for this work; packed by unit; printed Reifenhäuser documentation included
- Levels
- Main platform +3.85 m, dosing deck +6.70 m, outlet stack 15.5 m
- Inspection
- By appointment at the warehouse, or by video call
Included: layout plan, foundation plan, water and air connections, the Reifenhäuser operating manual and component documentation.

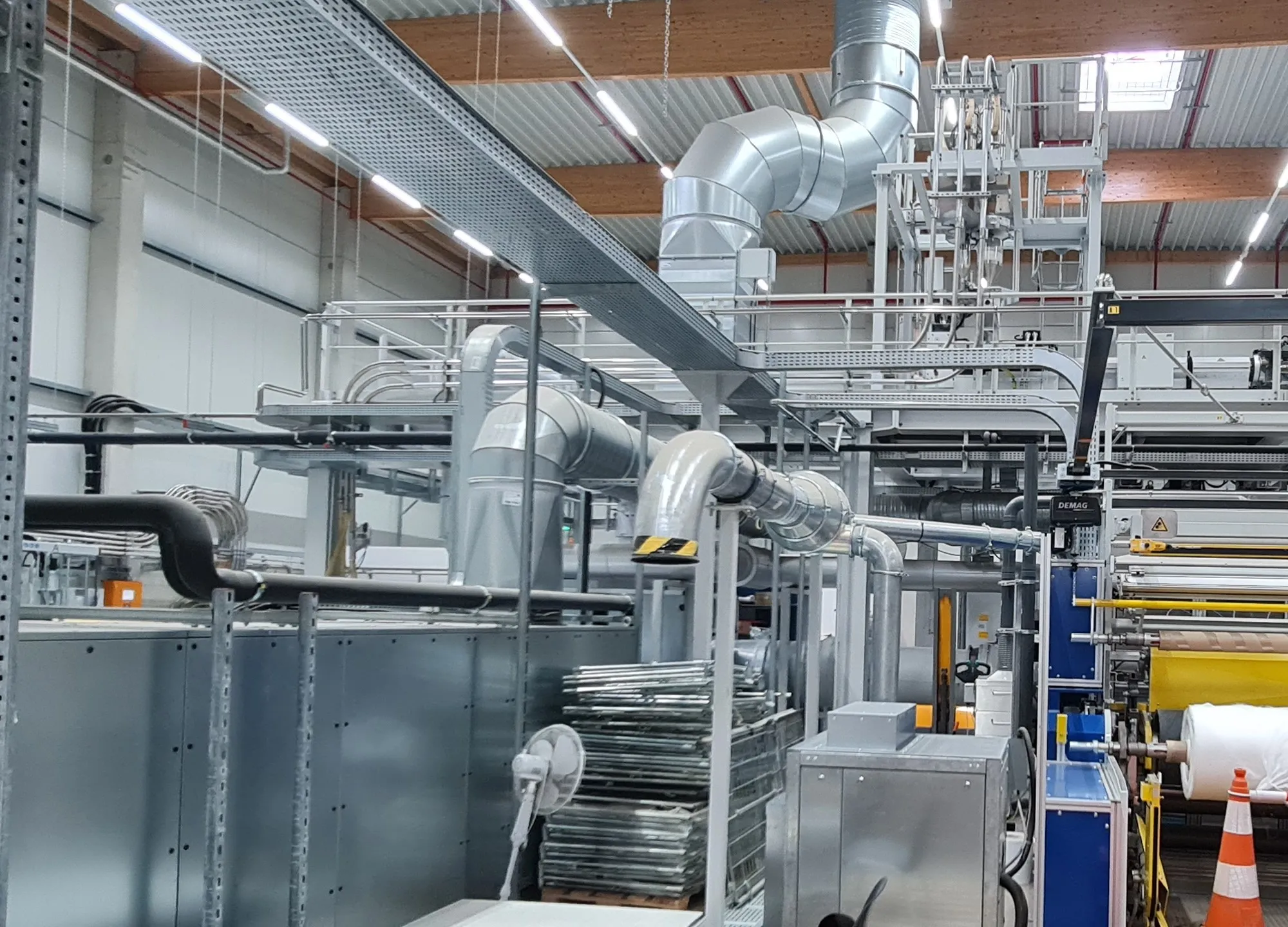

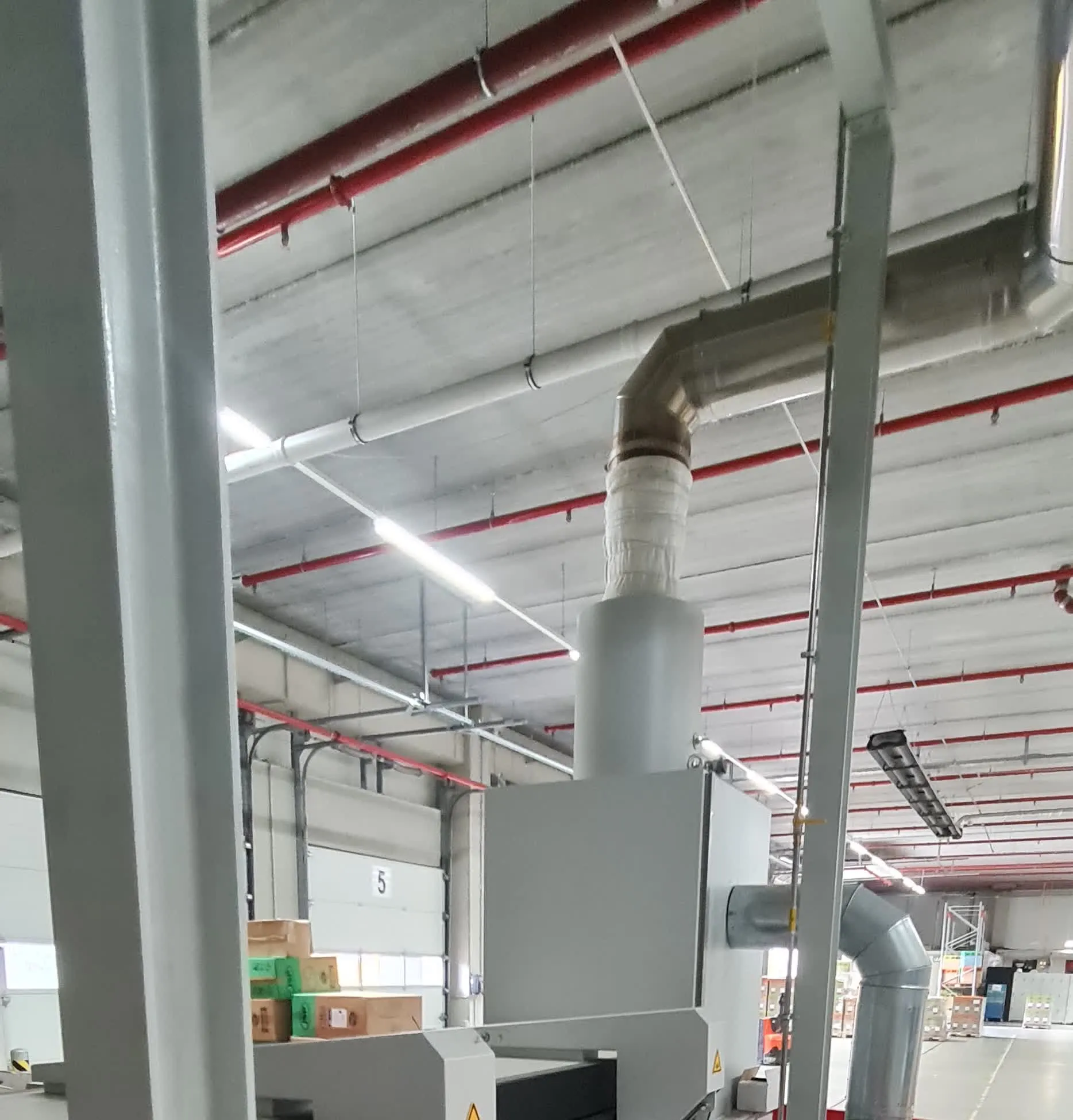

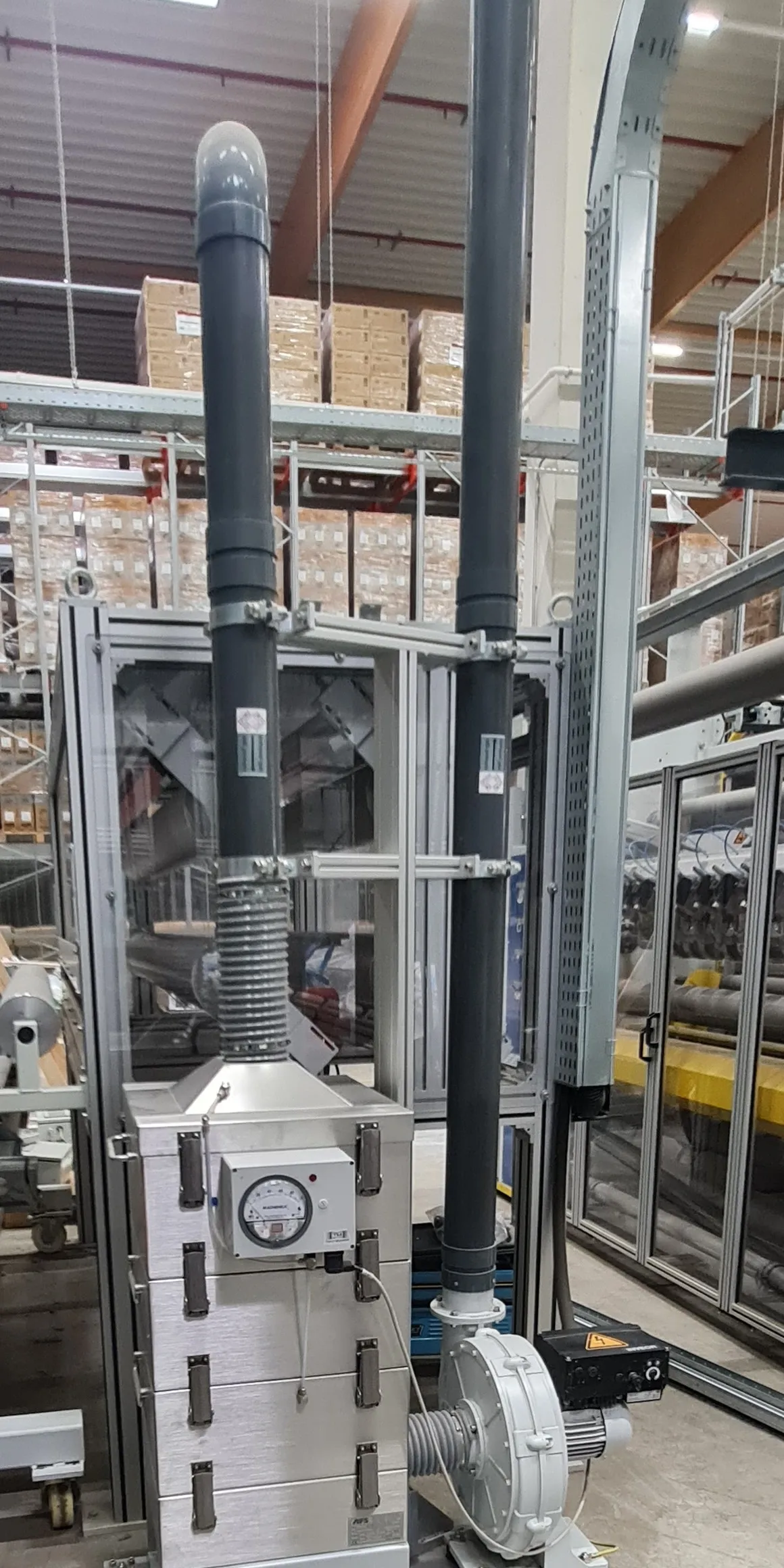

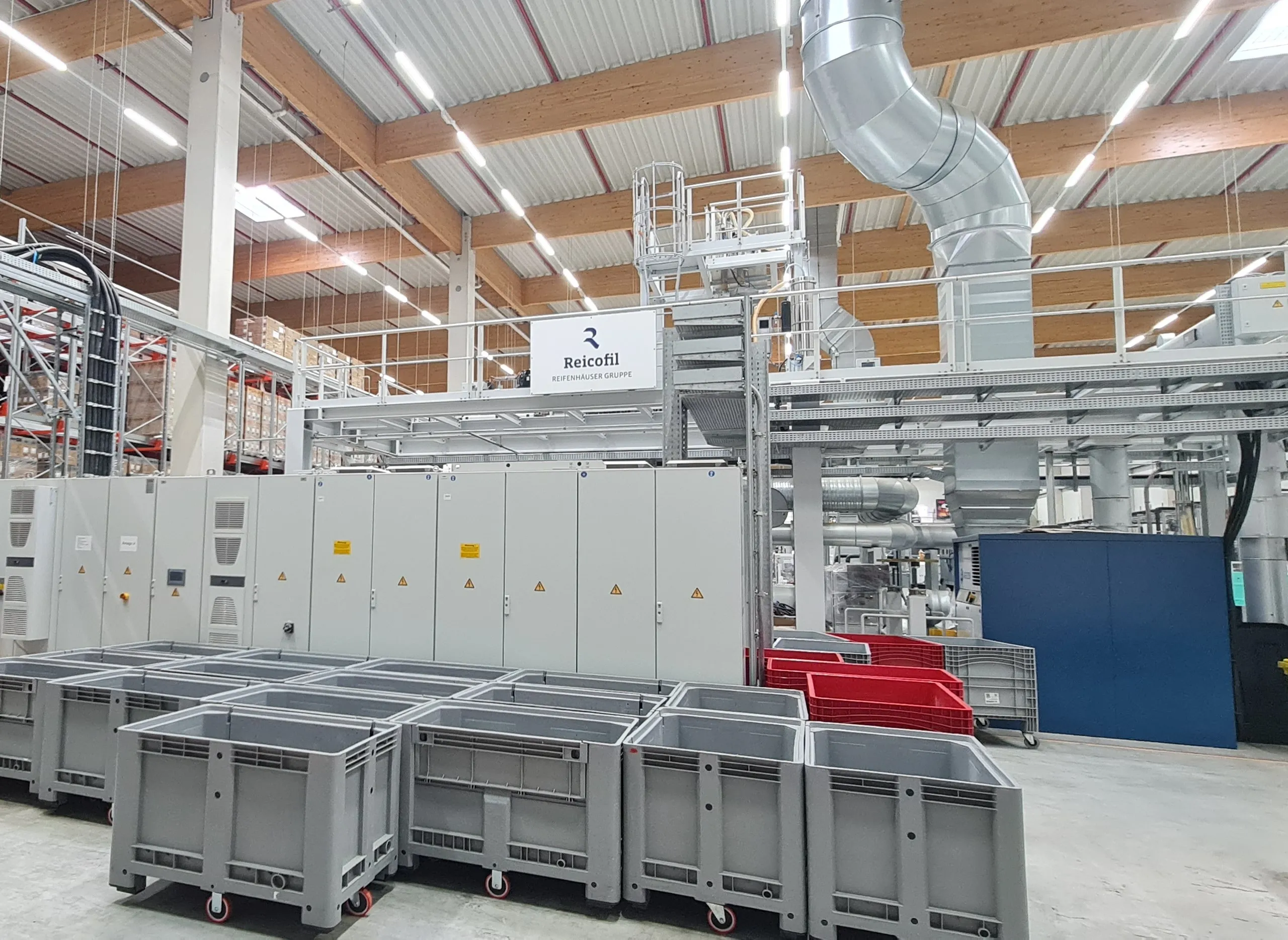

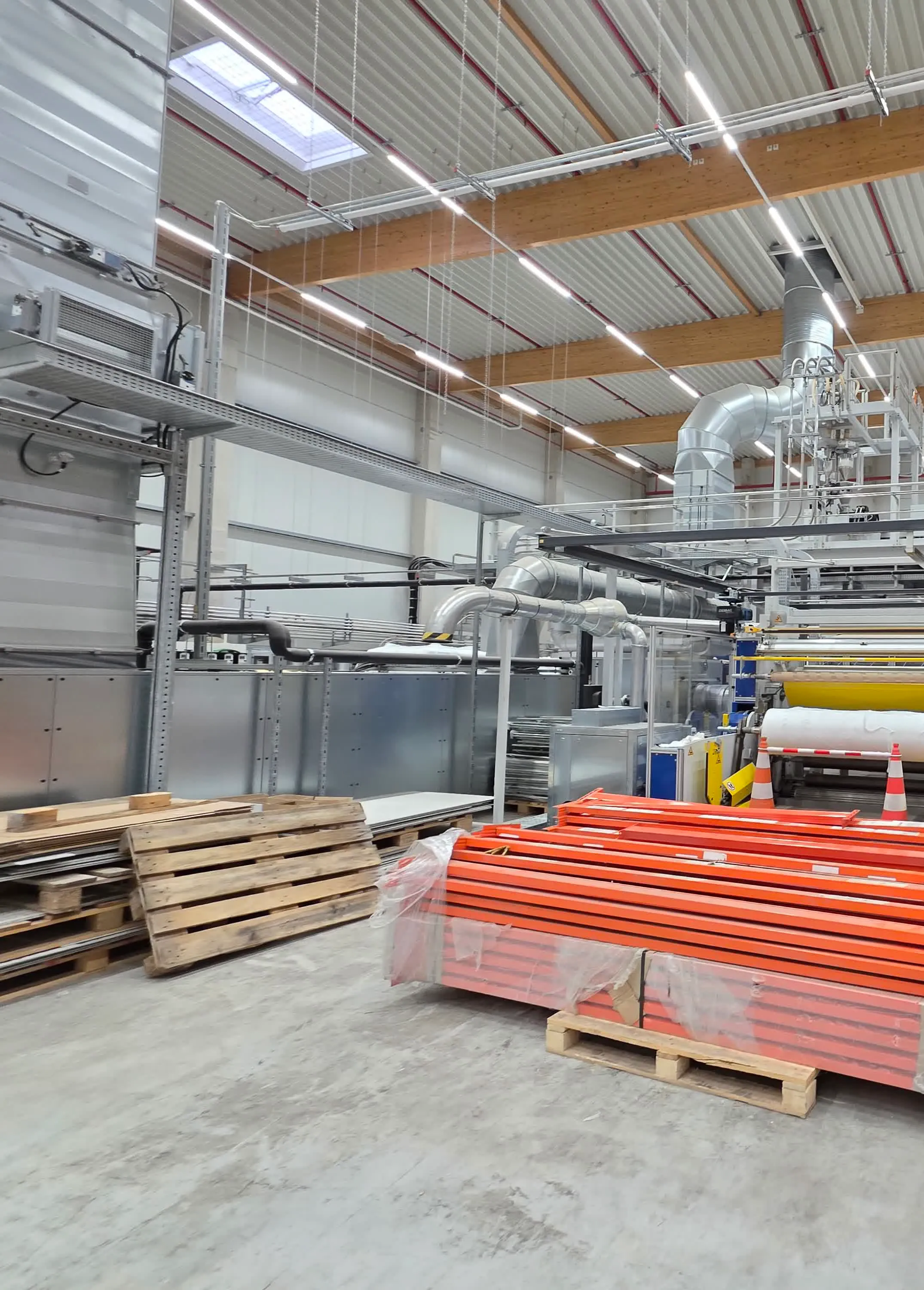

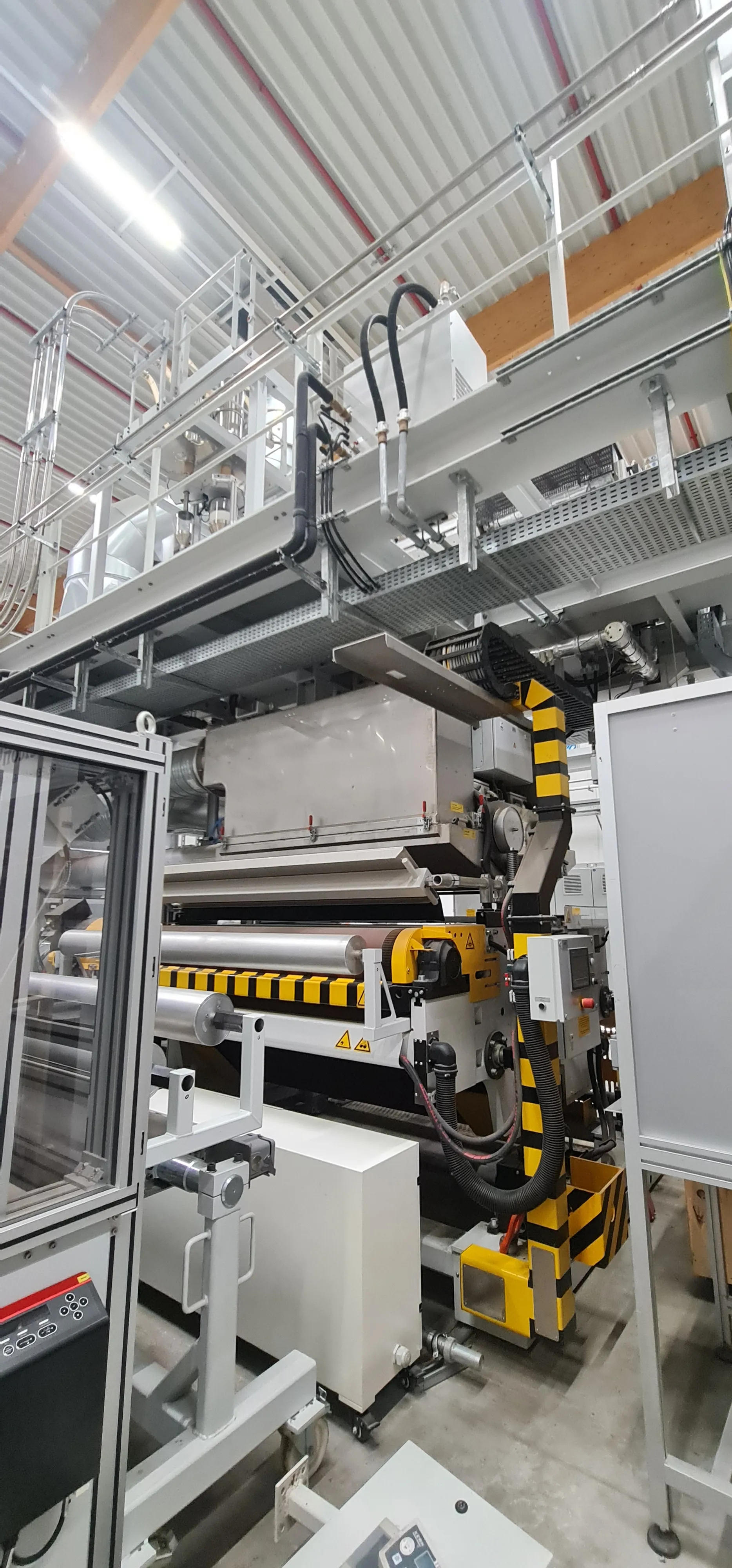

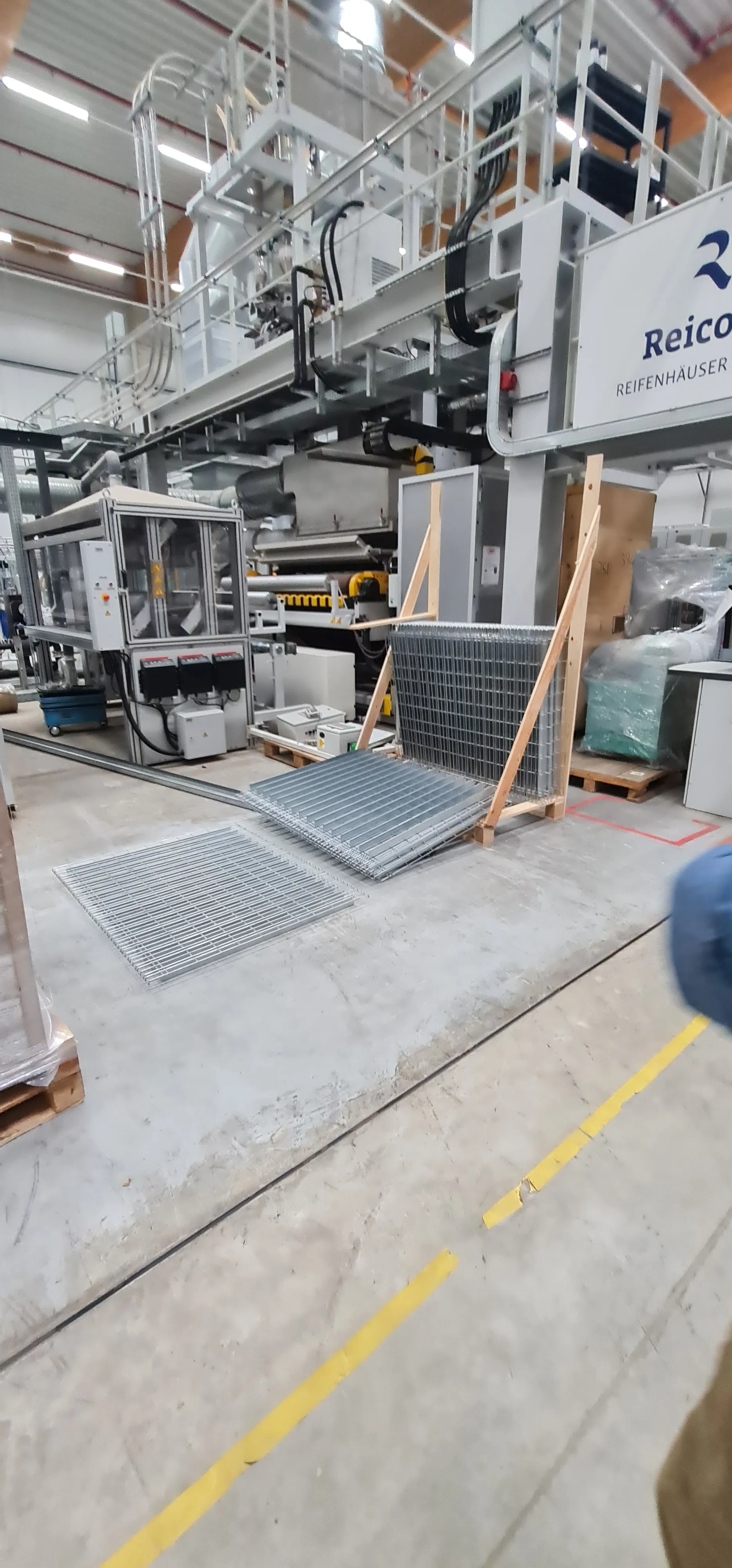

Photographs
Price and terms
The line is sold only as a whole
02
Turnkey installation
We can arrange transport, installation and commissioning at your site. Quoted separately.
03
Payment
Payment terms are agreed individually.
Price and terms
€890,000excl. VAT · complete line, ex-works Częstochowa, Poland
A new line of this type costs about €7,500,000.
Request the technical fileWho is selling
INTER-PLAST
On the market since 1995
INTER-PLAST sells industrial robots, CNC machines and robotic cells. Its technicians check each machine before sale and help with start-up and service.
The line is at our warehouse in Częstochowa. You can inspect it by appointment.
ul. Bojemskiego 9, 42-202 Częstochowa · NIP PL9492191529
About the sellerHow to buy
Purchase steps
- 01
Inquiry
Tell us about your product plans and timeline.
- 02
Technical file
We send the audit report, drawings and documentation.
- 03
Inspection
Video call, or a visit to see the packed line and documents in Częstochowa.
- 04
Contract
Price, scope and payment terms in writing.
- 05
Delivery
Ex-works pick-up, or transport arranged by us.
- 06
Installation
Turnkey installation and commissioning if you want it.
Questions
FAQ
01Can I see the line before buying?
Yes. The packed line and the documentation are at our warehouse in Częstochowa. Visits by appointment. We can also start with a video call.
02Is installation included in the price?
The price is ex-works. Turnkey transport, installation and commissioning are available and quoted separately.
03How is VAT handled?
The price excludes VAT. For EU companies with a valid VAT ID and for exports outside the EU the sale is normally invoiced without Polish VAT; we confirm this for your case before the contract.
04What documentation comes with the line?
The printed Reifenhäuser operating manual, component documentation, layout, foundation and utility drawings, and the December 2025 audit report.
05Who dismantled the line?
The line was dismantled under the supervision of the manufacturer's audit team by personnel certified for this work, and packed by unit for transport.
06Why are there only 205 hours on it?
The line did not run commercial production. The hours come from factory start-up and Reifenhäuser's audit tests.
07Can you ship outside Europe?
Yes. The line is packed by unit. We help arrange transport to your site.
